FixVault
Home
›
Subaru
›
2016
›
BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
PCV Valve (Fa20)
›
Exploded View
Exploded View

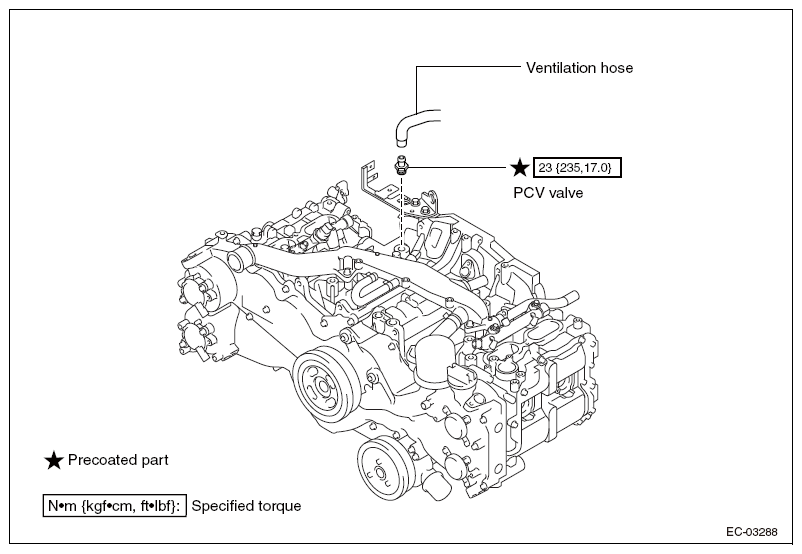

Fig 1: Exploded View Of PCV Valve (FA20) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
