Intake System (Fa20)
›
Circuit Figure
Circuit Figure

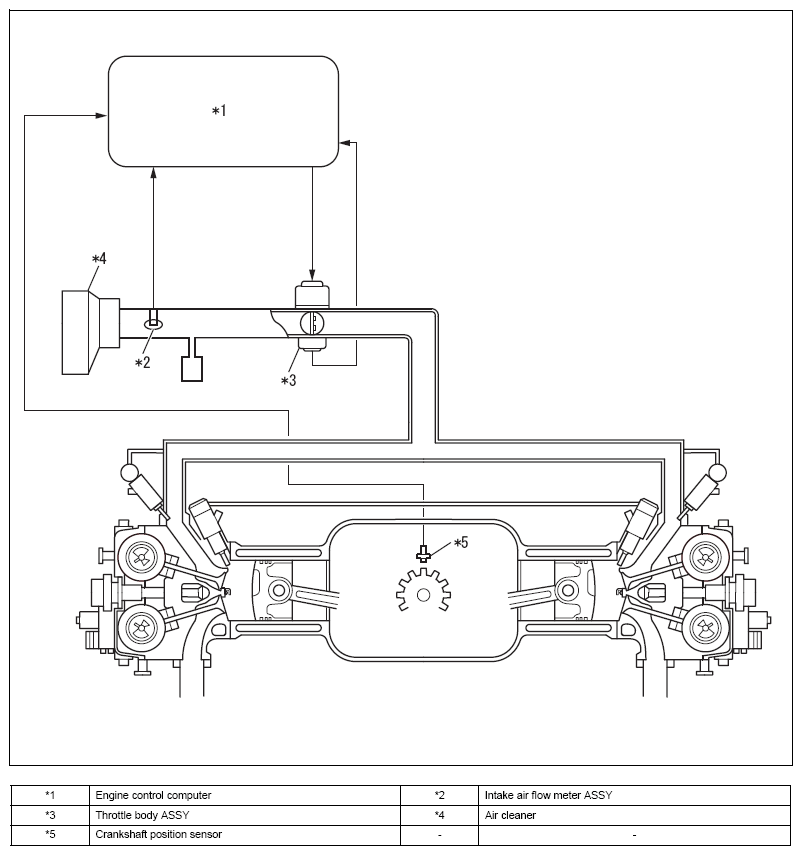

Fig 1: Intake System Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

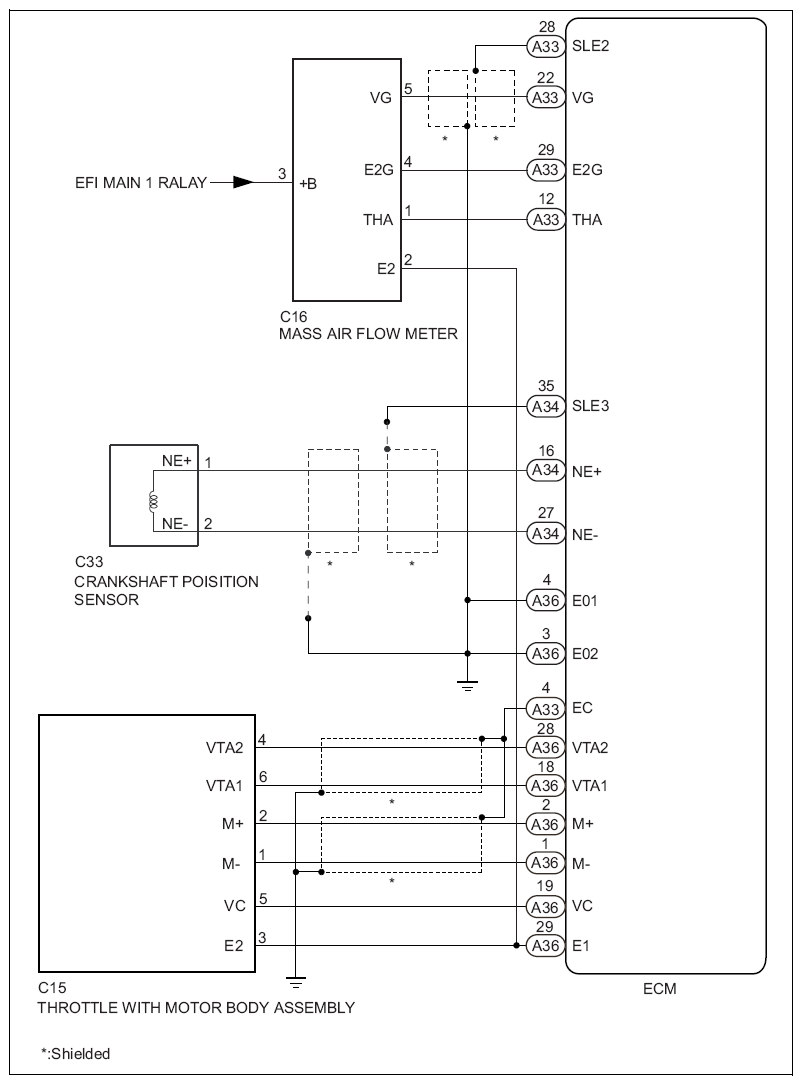

Fig 2: Intake System Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
