Engine Control System Diagnostics - System & Circuit Checks
›
VC Power Supply Circuit
›
Circuit figure
Circuit figure

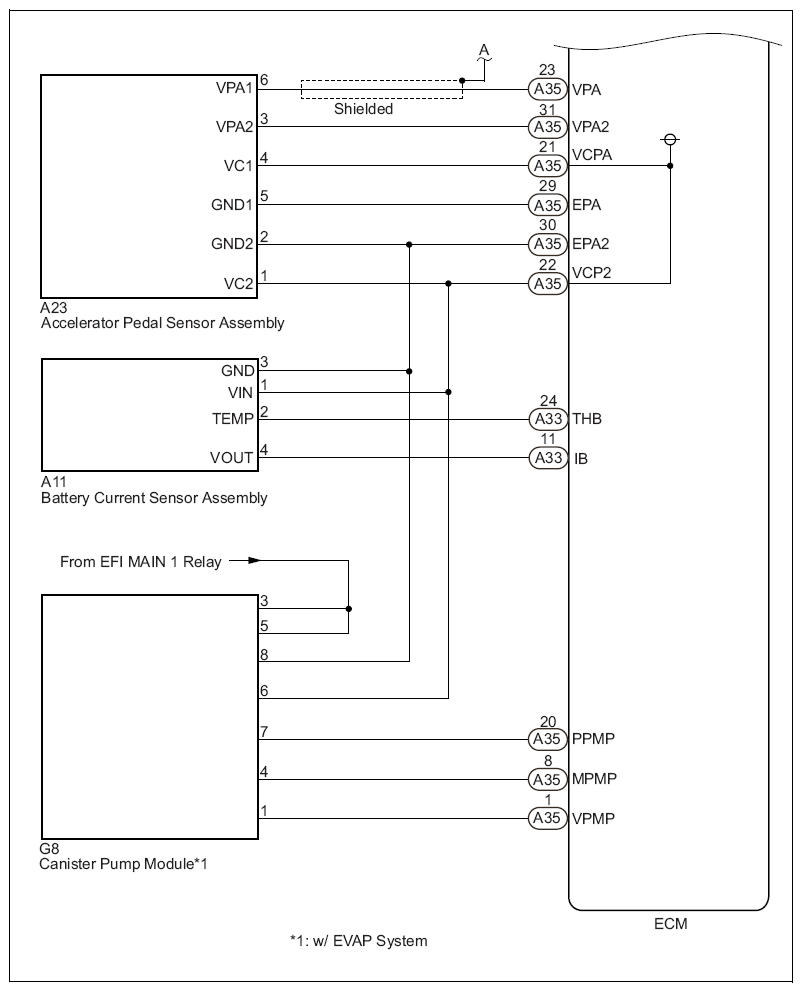

Fig 1: VC Power Supply Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

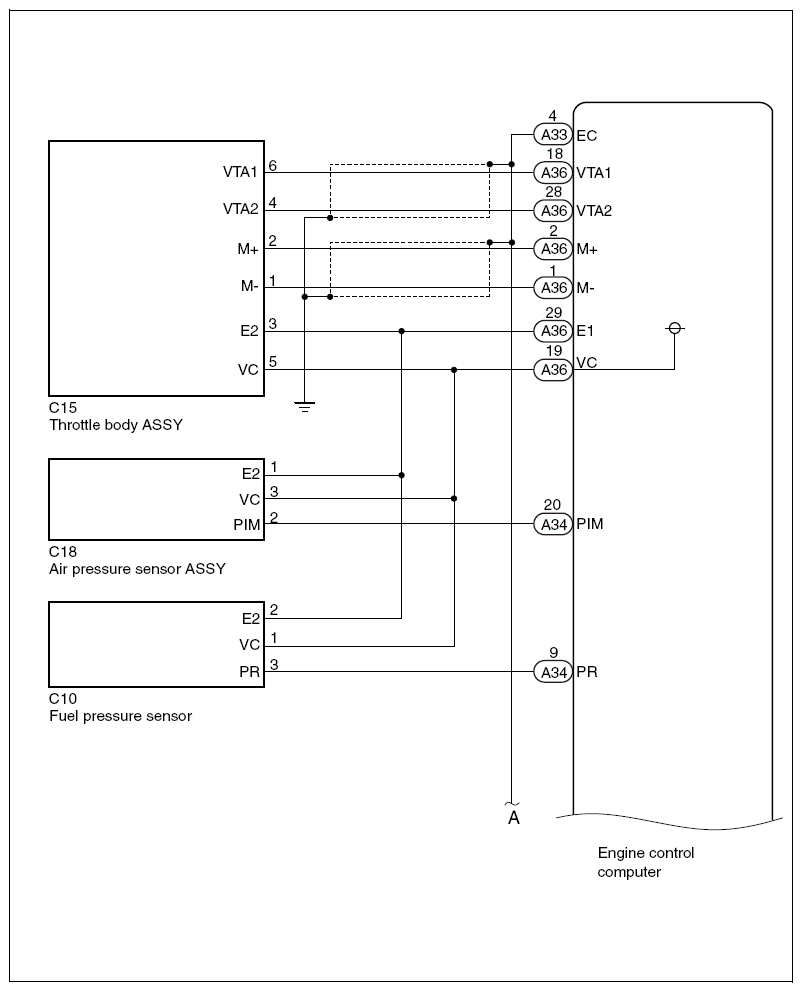

Fig 2: VC Power Supply Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
