Circuit figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

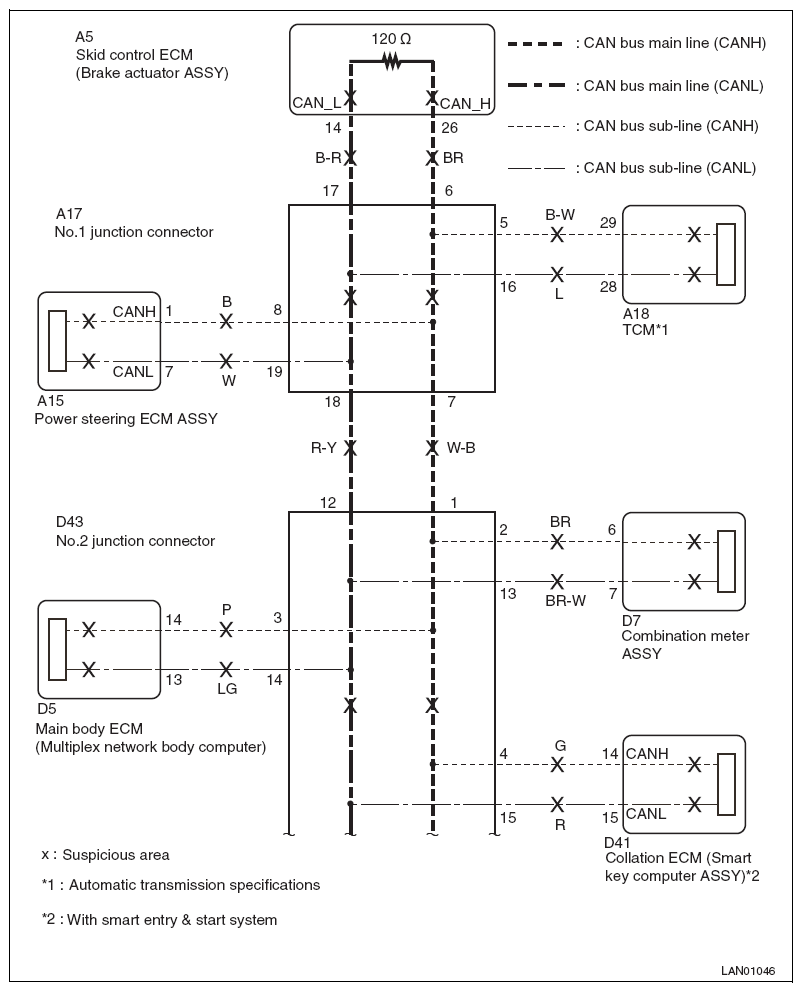

Fig 1: Data Link Connector - Circuit Diagram (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Data Link Connector - Circuit Diagram (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
