Automatic Transmission (Diagnostics)
›
Automatic Transmission System
›
Paddle Shift Switch System
›
Circuit figure
Circuit figure

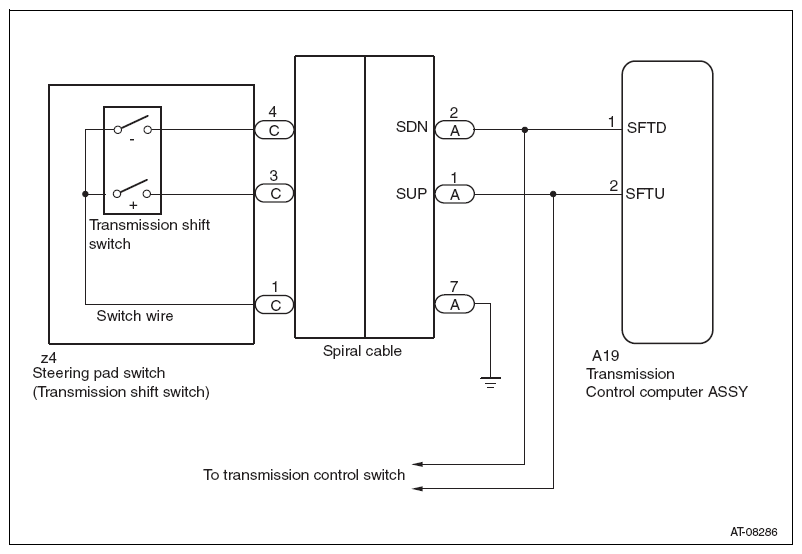

Fig 1: Paddle Shift Switch System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
