Transmission Wire: Installation

1. Apply auto fluid WS to a new O-ring and install it to the oil temperature sensor.
2. Apply auto fluid WS to a new O-ring and install it to the transmission wire connector.
3. Draw the transmission wire through the transmission wire connector mounting slot of the transmission valve body Assembly.
4. Install the transmission wire connector with the bolt.

   Standard value: T=5.4N.m {55kgf.cm} {4.0ft.lbf}

5. Connect the connector of the transmission wire.
   NOTE: For the transmission wire connector, push up the lever until a sound indicating the claw is hooked is heard.
   Fig 1: Connecting Transmission Wire Connector

   Courtesy of SUBARU OF AMERICA, INC.

1. Connect the 9 connectors to each solenoid valve.
2. Install the wiring harness clamp bracket with the bolt.

   Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

   Fig 2: Locating Wiring Harness Clamp Bracket With Bolt

   Courtesy of SUBARU OF AMERICA, INC.
3. Install the wiring harness to the clamp.
4. Connect the oil temperature sensor to the transmission valve body Assembly with the lock plate and bolt.

   Standard value: T=10N.m {102kgf.cm} {7.4ft.lbf}

1. Apply auto fluid WS to the entire circumference of a new O-ring and install it to the valve body oil strainer Assembly.
2. Install the valve body oil strainer Assembly to the transmission valve body Assembly with 4 bolts.

   Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

1. Install 3 magnets on the transmission oil pan Sub-Assembly (ATM).

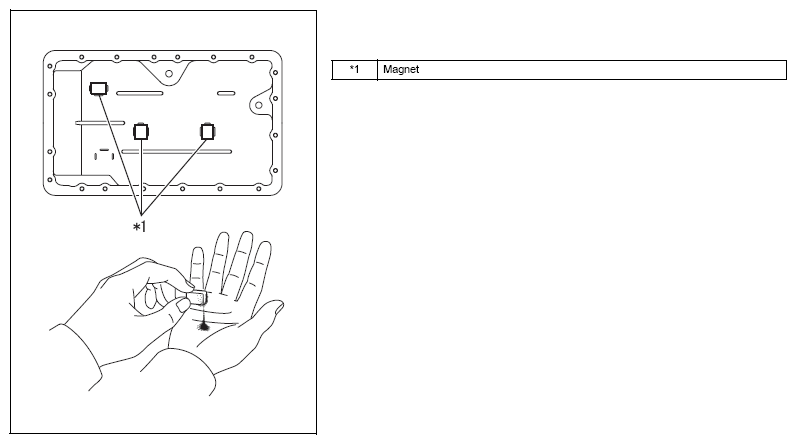

   Fig 3: Installing Magnets On Transmission Oil Pan Sub-Assembly (ATM)

   Courtesy of SUBARU OF AMERICA, INC.
2. Install a new gasket on the transmission oil pan Sub-Assembly (ATM).
3. Install the transmission oil pan Sub-Assembly (ATM) to the transmission case with 20 bolts.

   Standard value: T=7.0N.m {71kgf.cm} {5.2ft.lbf}

(Refer to INSTALLATION  )
