Door Locks
›
Wireless Door Lock Control System (Service Information)
›
Front Door Lock Assembly
›
Exploded View
Exploded View

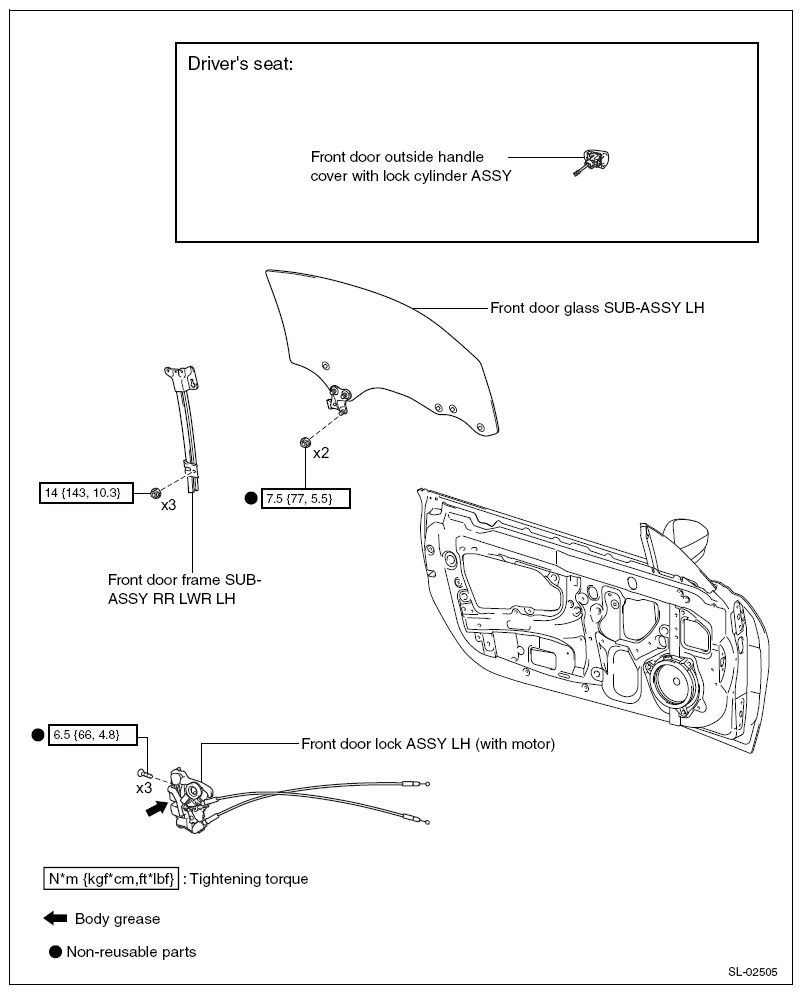

Fig 1: Exploded View Of Front Door Lock Assembly (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

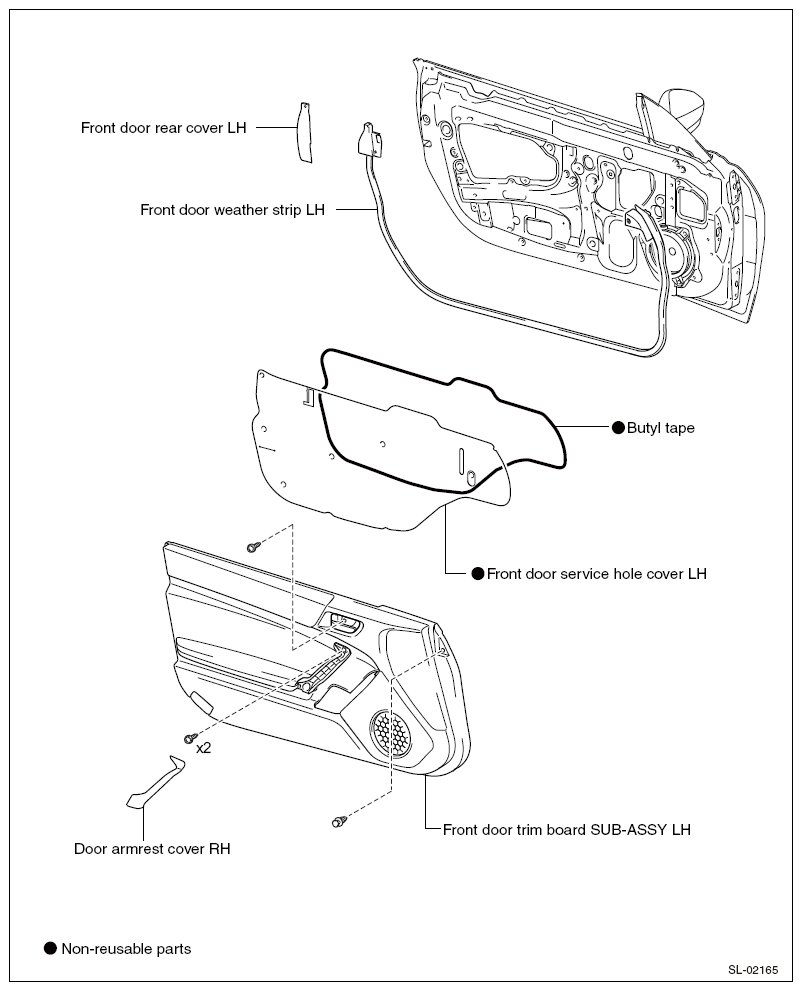

Fig 2: Exploded View Of Front Door Lock Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
