BRZ Limited, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Key Warning System
›
Key Warning System
›
Key Reminder Buzzer Does Not Sound
›
Circuit figure
Circuit figure

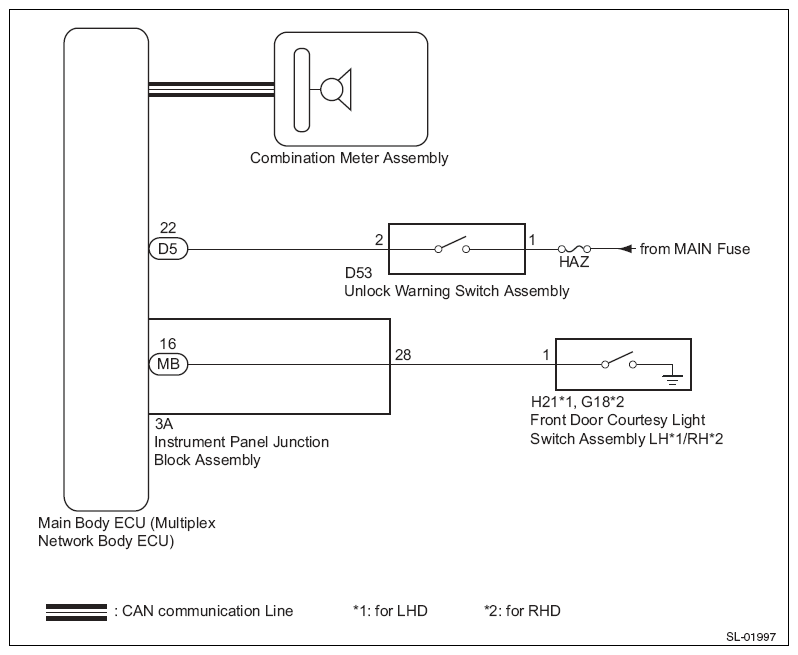

Fig 1: Combination Meter Assembly Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
