Power Window Regulator Motor Assembly (Installed To The Front Side)
›
Exploded View
Exploded View

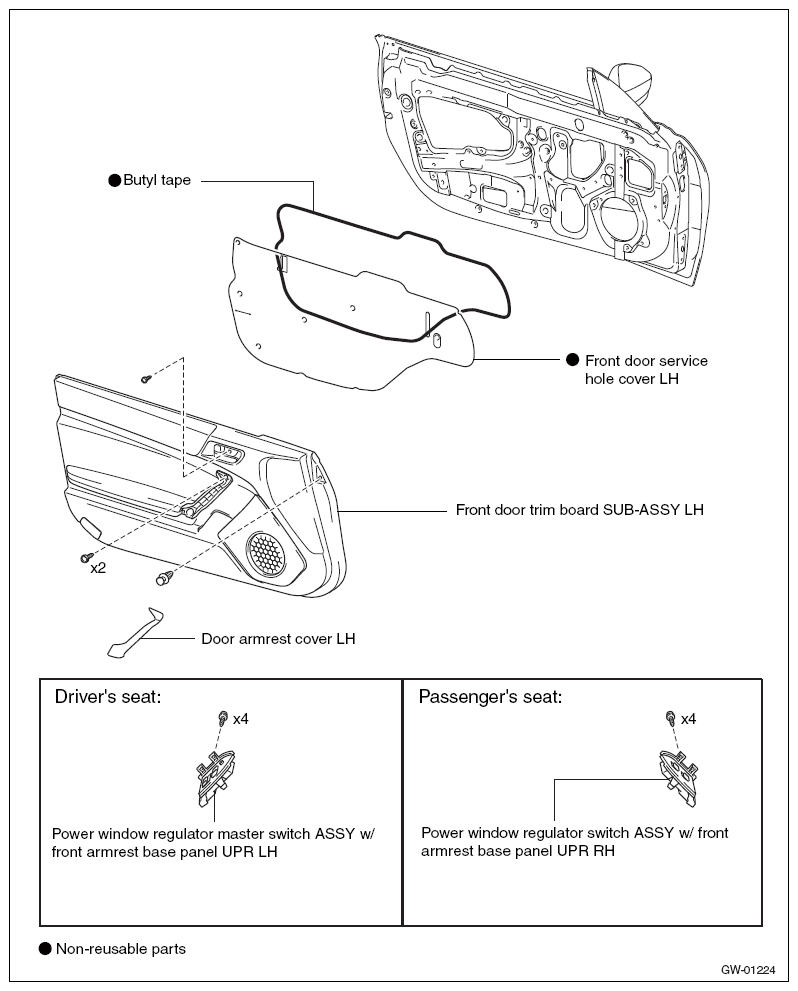

Fig 1: Exploded View Of Power Window Regulator Motor Assembly (Installed To Front Side) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

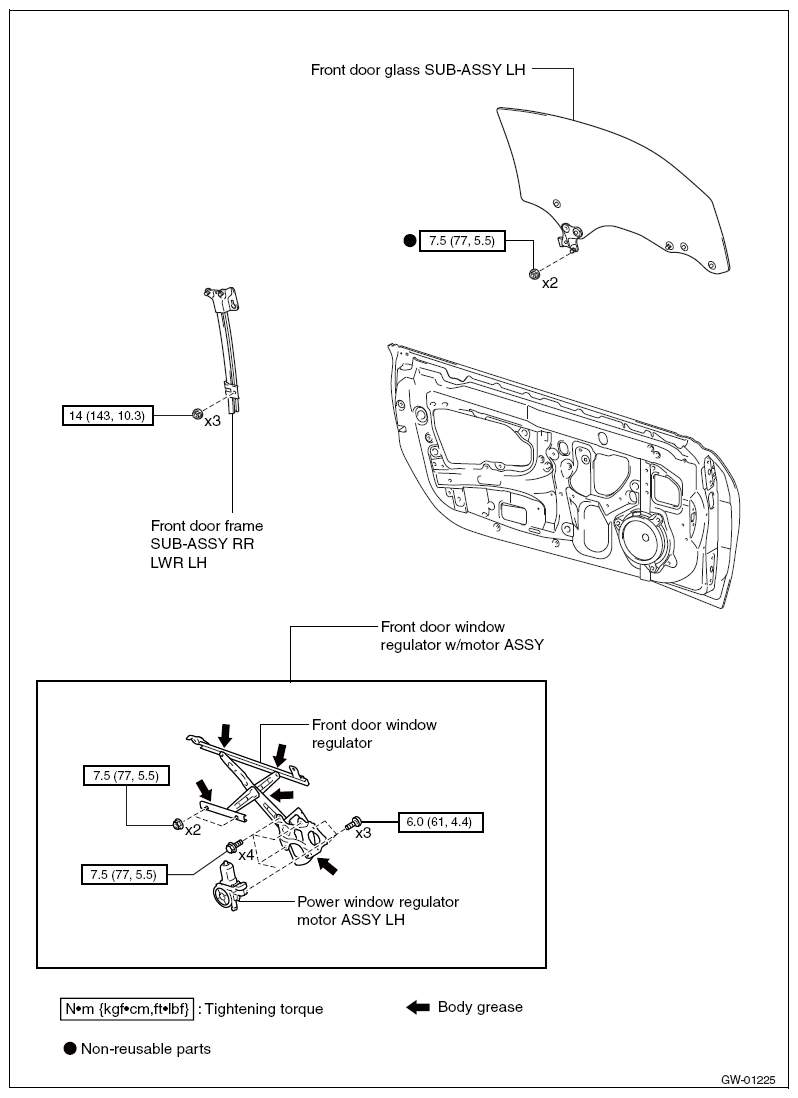

Fig 2: Exploded View Of Power Window Regulator Motor Assembly (Installed To Front Side) With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
