BRZ Limited, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Power Control System
›
Power Control System
›
Circuit Figure
Circuit Figure

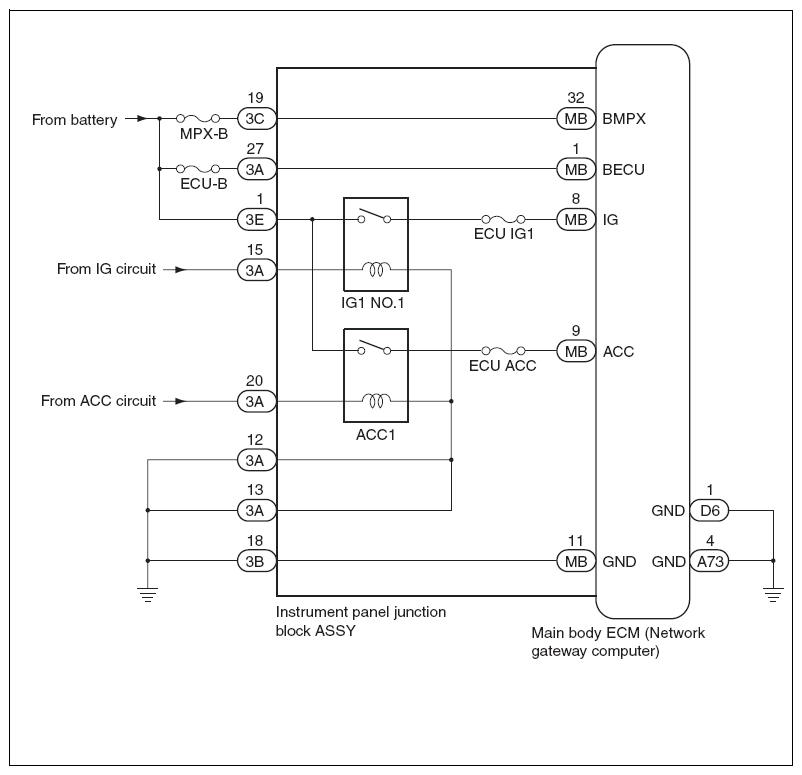

Fig 1: Power Control System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
