Engine Oil Pressure Switch Assembly (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of air cleaner case SUB-ASSY (Refer to V-BELT (FA20) )
  3. Engine oil pressure switch ASSY removal
    1. Disconnect the connector of engine oil pressure switch ASSY.
    2. Remove the engine oil pressure switch assembly.
      CAUTION: Catch the engine oil using cloth and the like to prevent it from splashing.

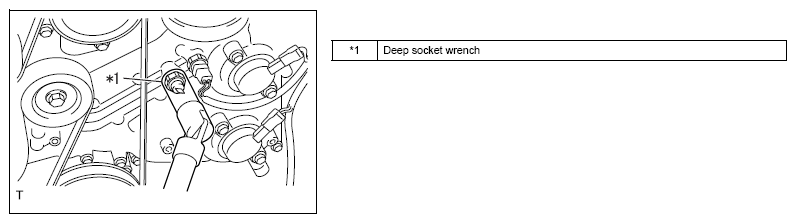

      Fig 1: Removing Engine Oil Pressure Switch Assembly
      G10213969Courtesy of SUBARU OF AMERICA, INC.
