Glass & Power Window System
›
Window Defogger System
›
Circuit Figure
›
Notes
Circuit Figure: Notes

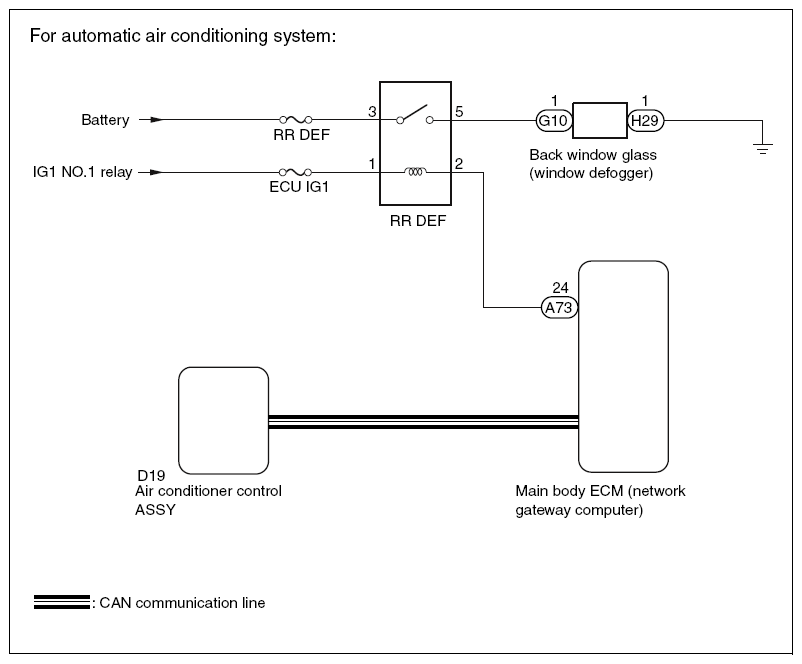

Fig 1: Rear Defogger Circuit Diagram (For Automatic Air Conditioning System)
Courtesy of SUBARU OF AMERICA, INC.

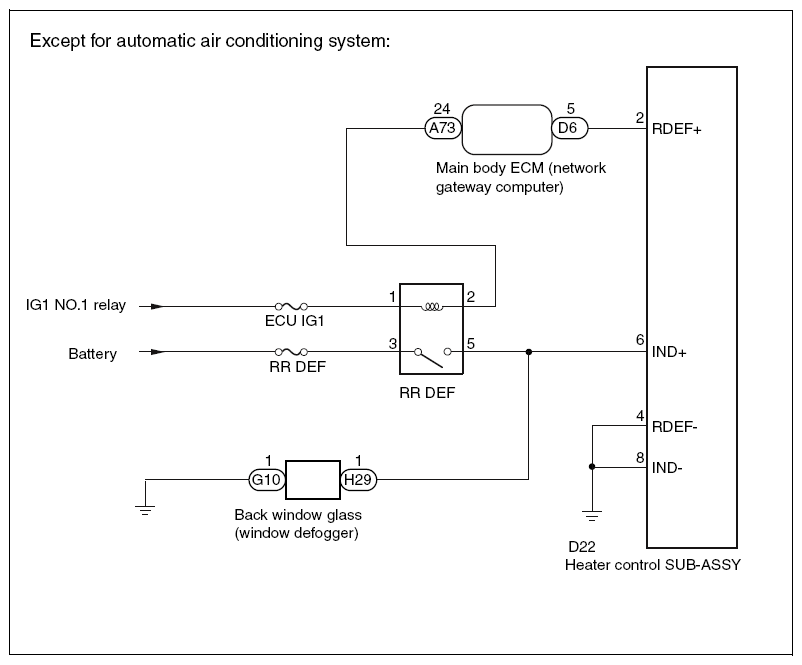

Fig 2: Rear Defogger Circuit Diagram (Except For Automatic Air Conditioning System)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
