BRZ Premium
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
Manual Transmission Assembly
›
Exploded View
Exploded View

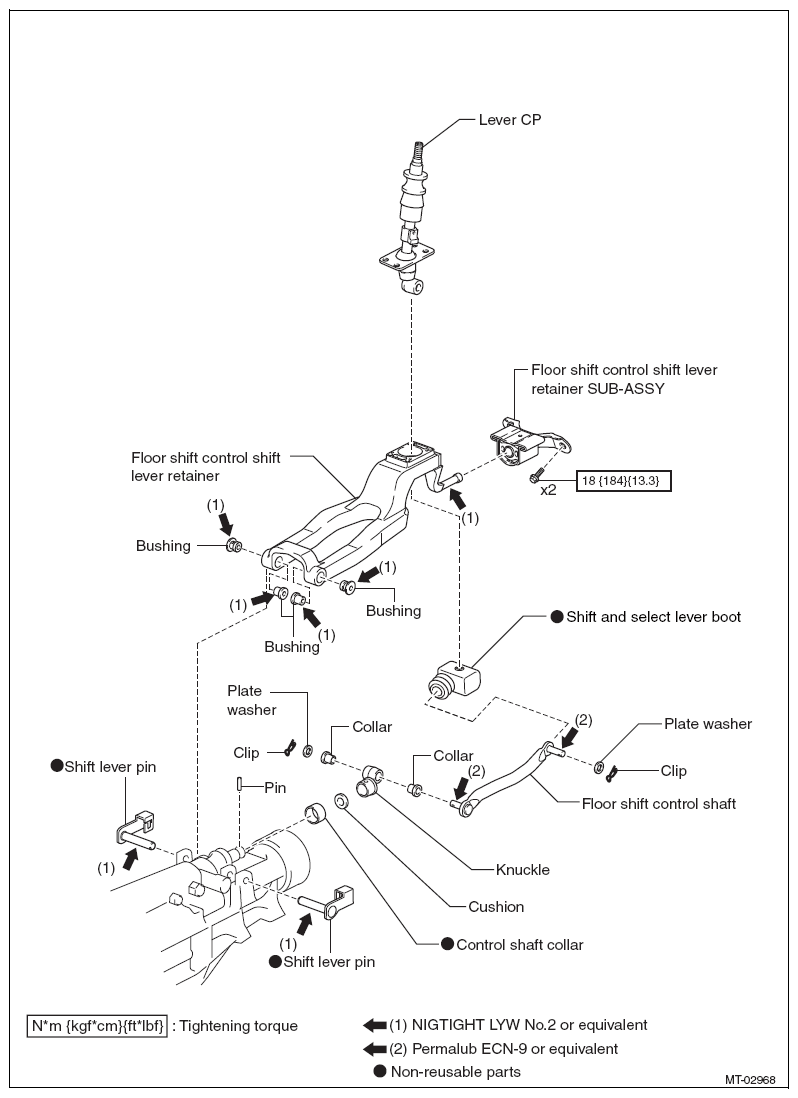

Fig 1: Exploded View Of Manual Transmission Assembly With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

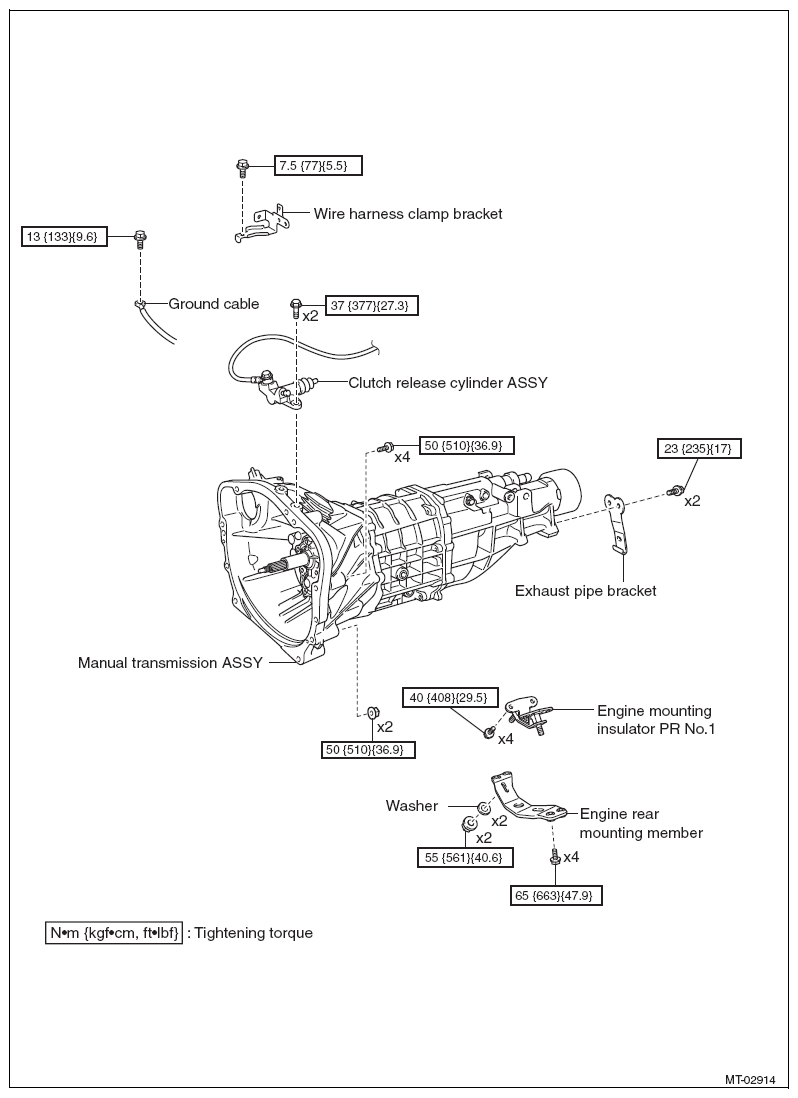

Fig 2: Exploded View Of Manual Transmission Assembly With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

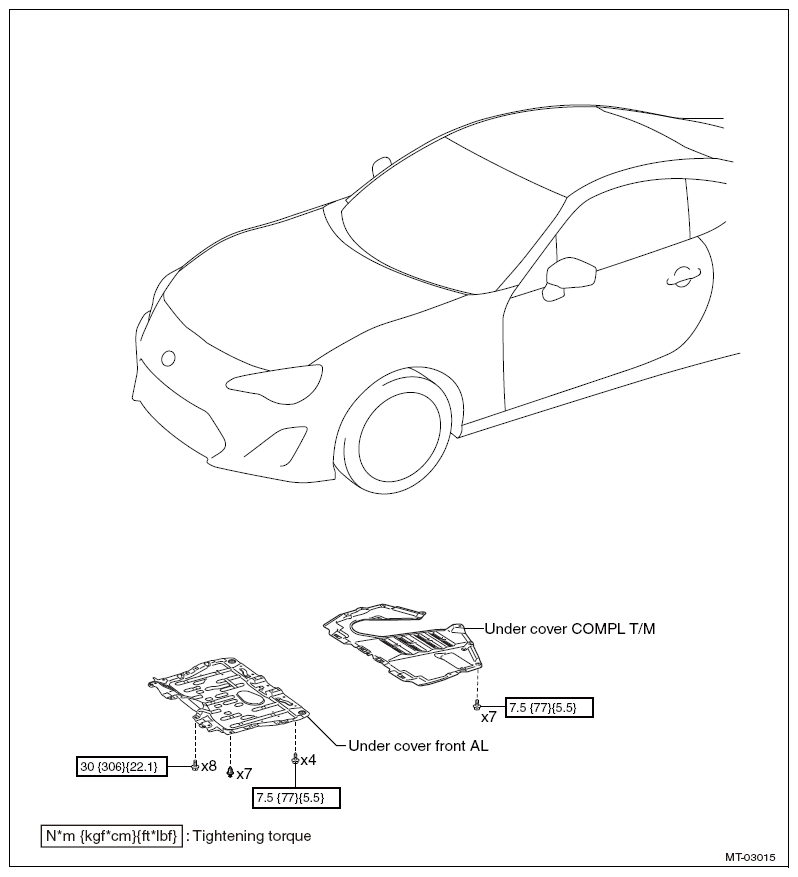

Fig 3: Exploded View Of Manual Transmission Assembly With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
