Parking Brake System
›
Parking Brake Assembly
›
Exploded View
Exploded View

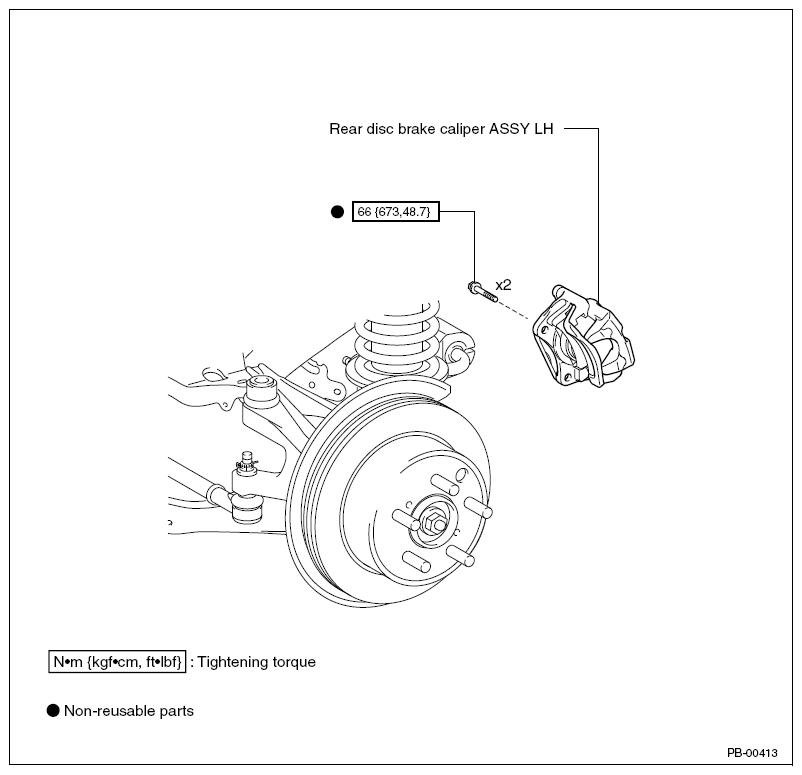

Fig 1: Exploded View Of Parking Brake Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

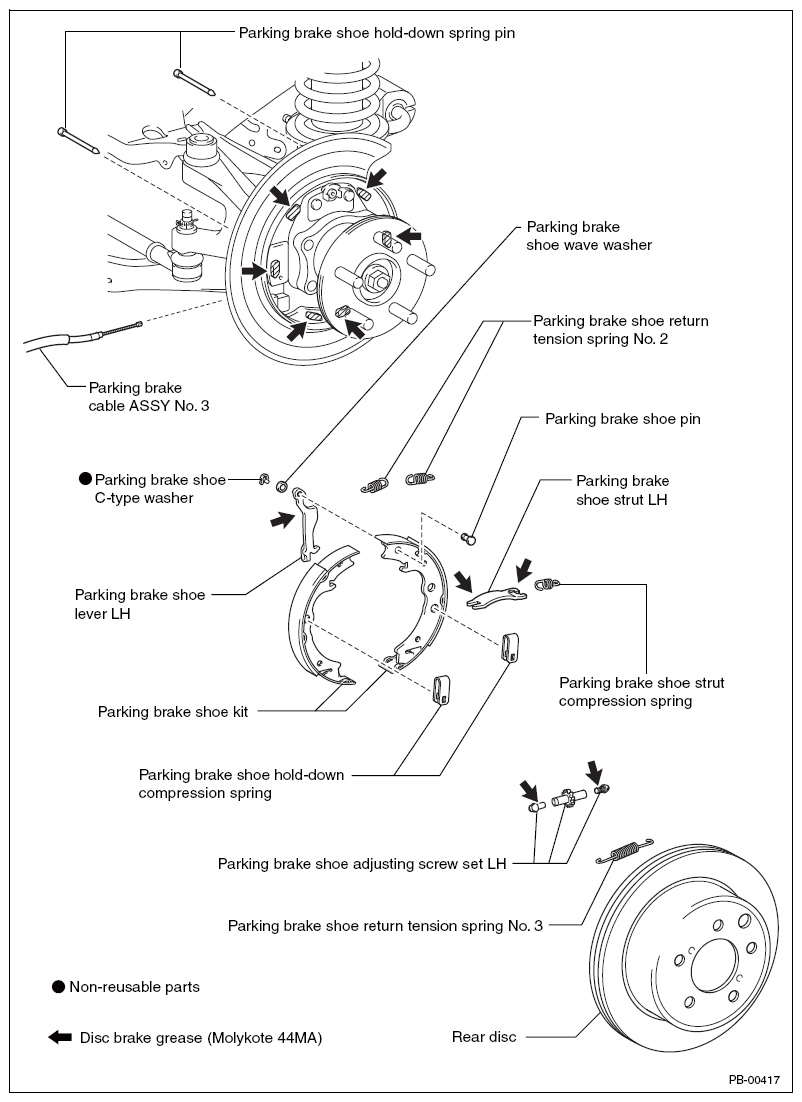

Fig 2: Exploded View Of Parking Brake Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
