Circuit Figure
Circuit Figure

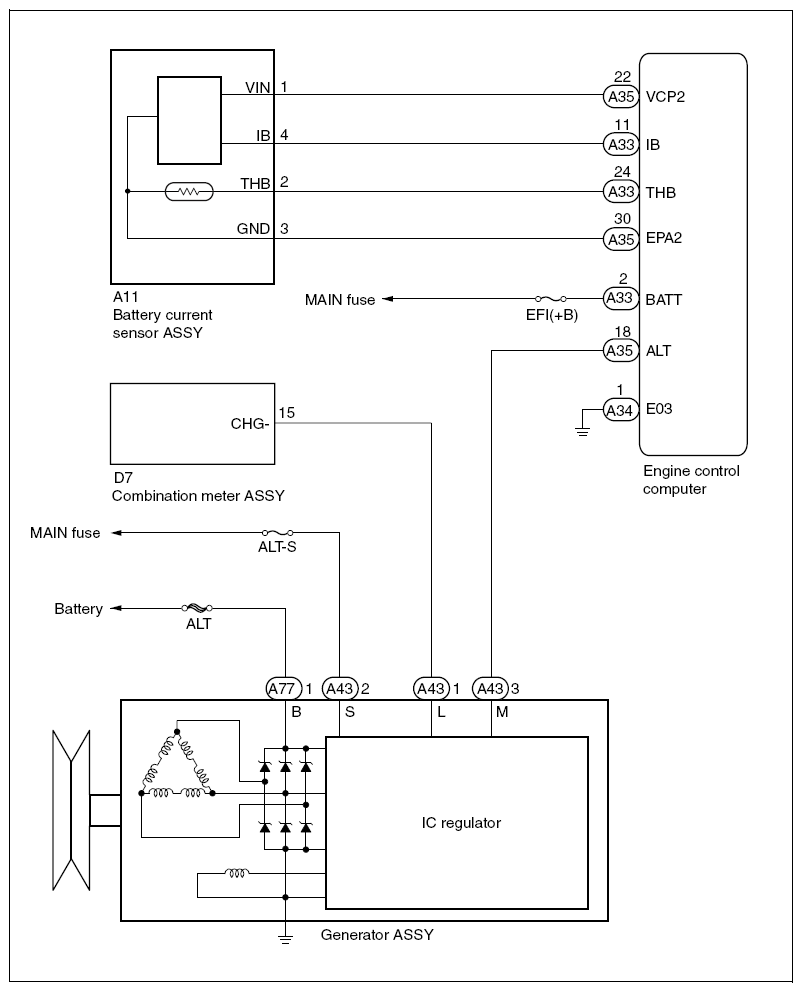

Fig 1: Charging System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
