Instrument Panel Upper: Assembly

  1. Installation of instrument panel cushion
    1. Install a new instrument panel cushion.
      Fig 1: Identifying Instrument Panel Cushion
      G10217298Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of defroster nozzle garnish No. 1
    1. Engage the 16 claws and 8 guides and install defroster nozzle garnish No. 1.

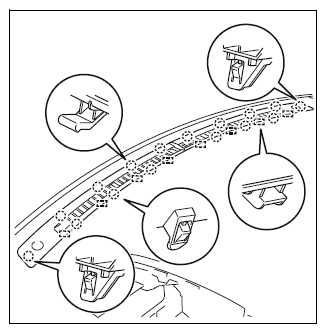

      Fig 2: Locating Defroster Nozzle Garnish No. 1 Claws
      G10217299Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of instrument panel register bezel (installed on the RH side)
    1. Engage the 3 claws and install the instrument panel register bezel.
      Fig 3: Locating Instrument Panel Register Bezel Claws
      G10217300Courtesy of SUBARU OF AMERICA, INC.
  4. Installation of instrument panel resistor sub-assembly No. 1
    1. Engage the 3 claws and install instrument panel register sub-assembly No. 1.
      Fig 4: Locating Instrument Panel Register Sub-Assembly No. 1 Claws
      G08555471Courtesy of SUBARU OF AMERICA, INC.
  5. Installation of instrument panel register bezel (installed on the LH side)
    NOTE: Install the part in the same manner as RH side.
  6. Installation of instrument panel register sub-assembly No. 2
    NOTE: Install the part in the same manner as RH side.
  7. Installation of instrument panel register assembly center
    1. Engage the 2 clips and install the instrument panel register assembly center
    2. Install the 2 screws.
      Fig 5: Locating Instrument Panel Register Assembly center Clips
      G10217302Courtesy of SUBARU OF AMERICA, INC.
  8. Installation of defroster nozzle garnish No. 2
    1. Engage the 2 claws and install defroster nozzle garnish No. 2.
      Fig 6: Locating Defroster Nozzle Garnish No. 2 Claws
      G10217303Courtesy of SUBARU OF AMERICA, INC.
  9. Installation of defroster nozzle garnish No. 3
    NOTE: Install the part in the same manner as RH side.
  10. Installation of side defroster nozzle duct No. 1
    1. Engage the 2 claws and install side defroster nozzle duct No. 1.
      Fig 7: Locating Side Defroster Nozzle Duct No. 1 Claws
      G10217304Courtesy of SUBARU OF AMERICA, INC.
  11. Installation of side defroster nozzle duct No. 2
    NOTE: Install the part in the same manner as RH side.
  12. Installation of defroster nozzle assembly
    1. Fit in the 5 claws.
    2. With the 5 screws, install the defroster nozzle assembly as an assembly with side defroster nozzle ducts No. 1 and No. 2.

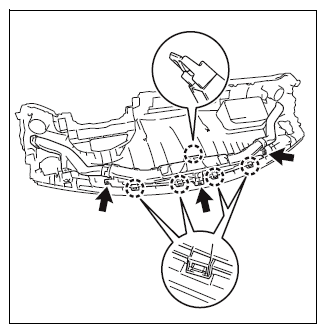

      Fig 8: Locating Defroster Nozzle Assembly Claws
      G10217305Courtesy of SUBARU OF AMERICA, INC.
  13. Installation of heater-to-resistor duct No. 2
    1. Engage the claw and install heater-to-resistor duct No. 2.
    2. Install the 3 screws.

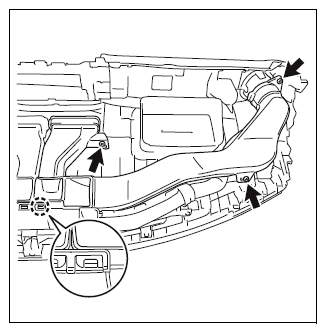

      Fig 9: Locating Heater-To-Resistor Duct No. 2 Claw
      G10217306Courtesy of SUBARU OF AMERICA, INC.
  14. Installation of heater-to-resistor duct No. 1
    NOTE: Install the part in the same manner as RH side.
