Combination Meter Assembly: Removal
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES
)
- Removal of instrument cluster finish panel sub-assembly CTR (Refer to DISASSEMBLY
)
- Removal of the meter hood sub-assembly (Refer to DISASSEMBLY
)
- Removal of the instrument panel meter ornament UPR (Refer to DISASSEMBLY
)
- Removal of the combination meter assembly

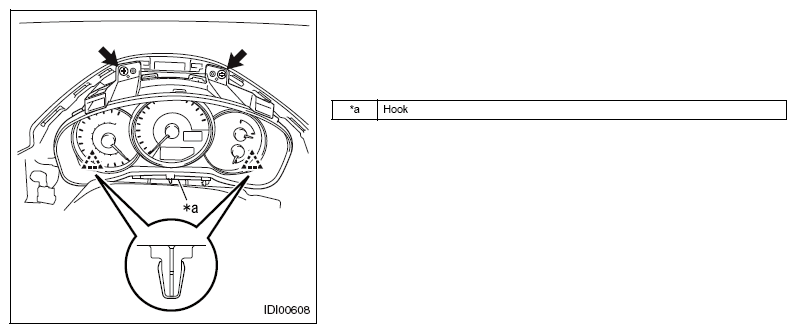

- Remove the 2 screws.
- Pull the hook at the bottom of the combination meter assembly to release two clips and pull it out toward the rear.
Courtesy of SUBARU OF AMERICA, INC.
- Disconnect the connector and remove the combination meter assembly.
Courtesy of SUBARU OF AMERICA, INC.
