Entry Start System Start System (Keyless Start)
›
Entry & Start System (Start Function)
›
Parts Location
Parts Location

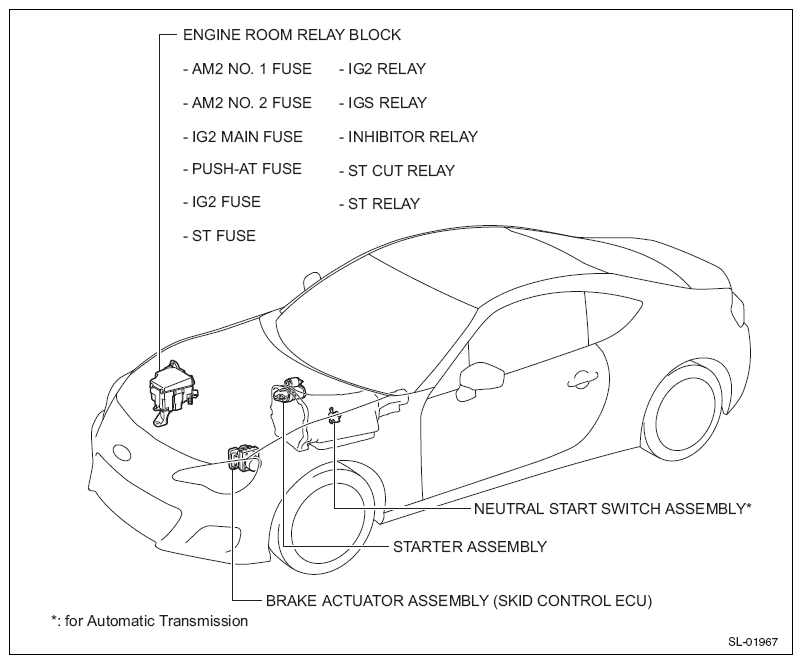

Fig 1: Entry & Start System (Start Function) Parts Location (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

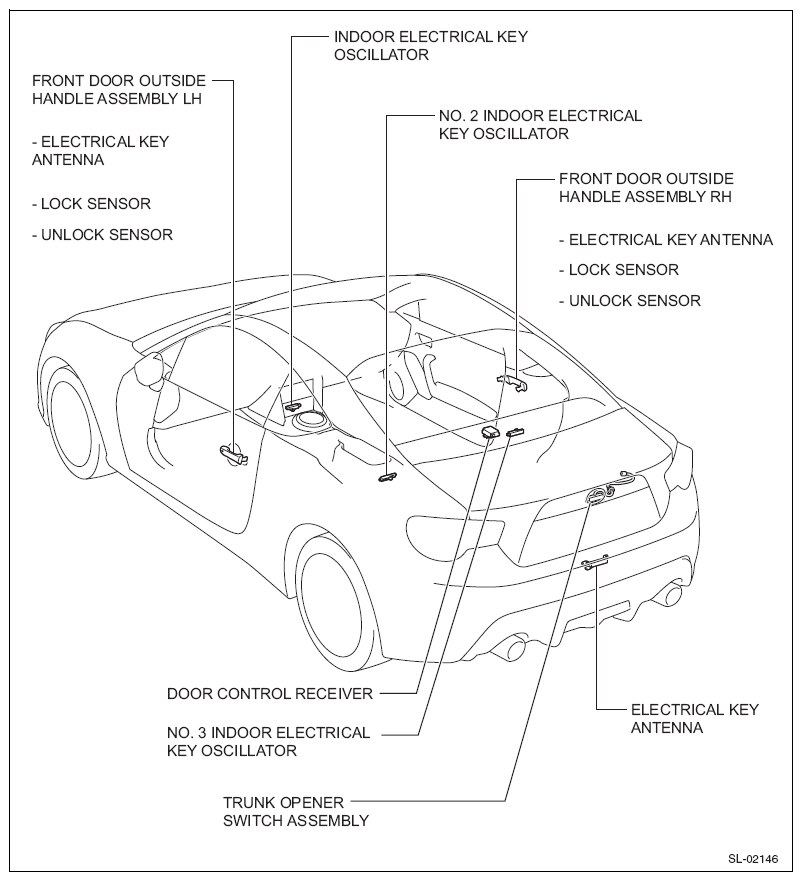

Fig 2: Entry & Start System (Start Function) Parts Location (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

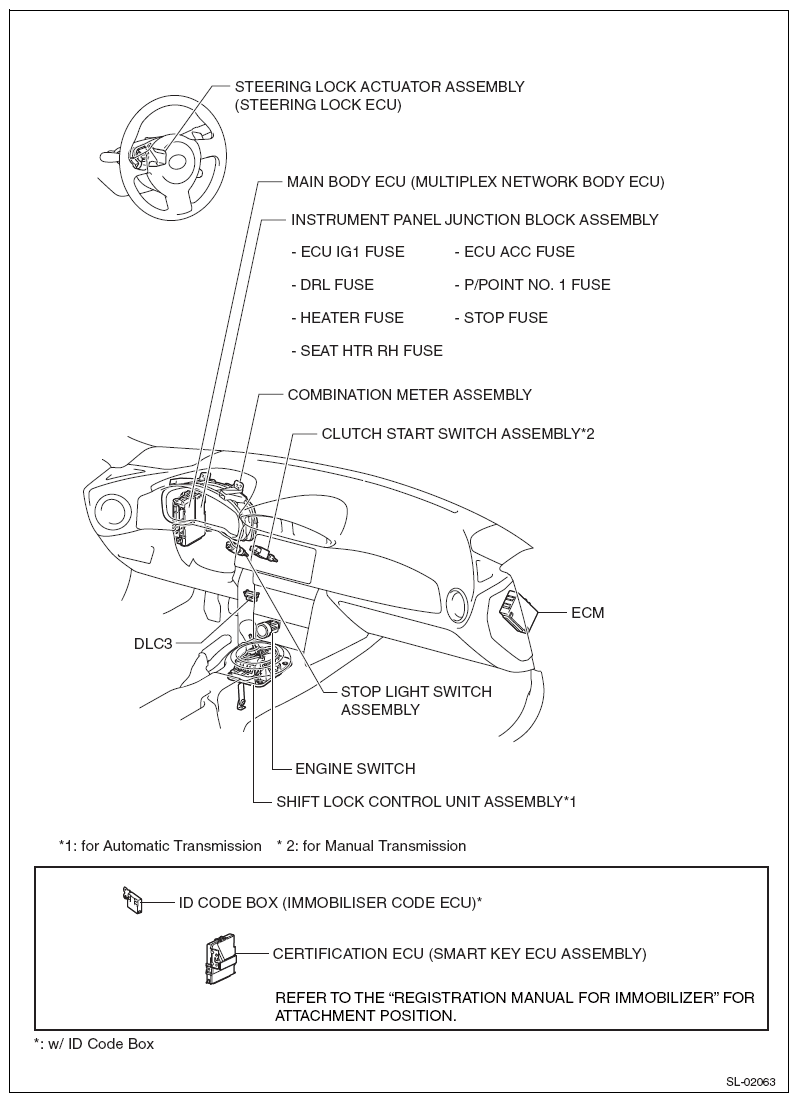

Fig 3: Entry & Start System (Start Function) Parts Location (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
