Starting System (Fa20)
›
Circuit Figure
Circuit Figure

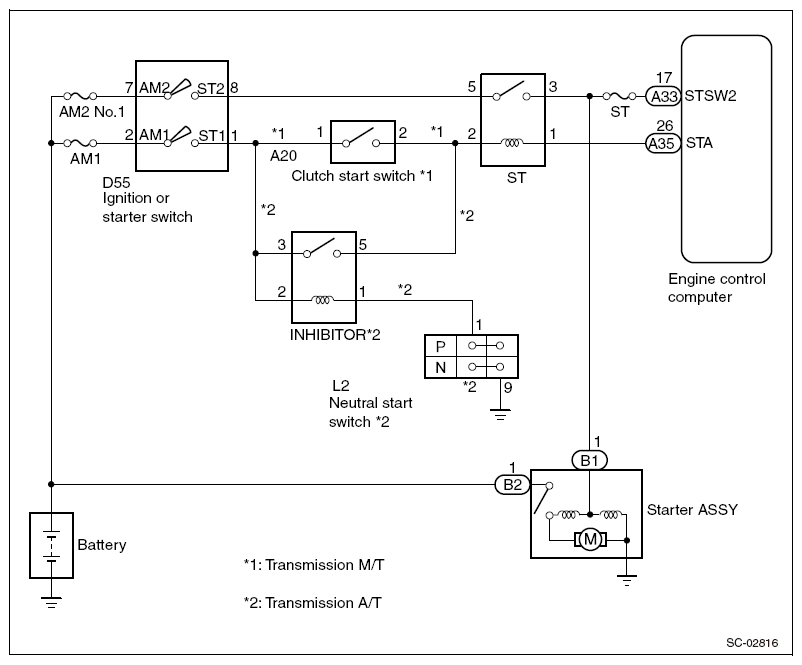

Fig 1: Starting System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
