Engine Mechanical
›
Cooling Fan
›
Engine Cooling System
›
Radiator Assembly (Fa20)
›
Exploded View
Exploded View

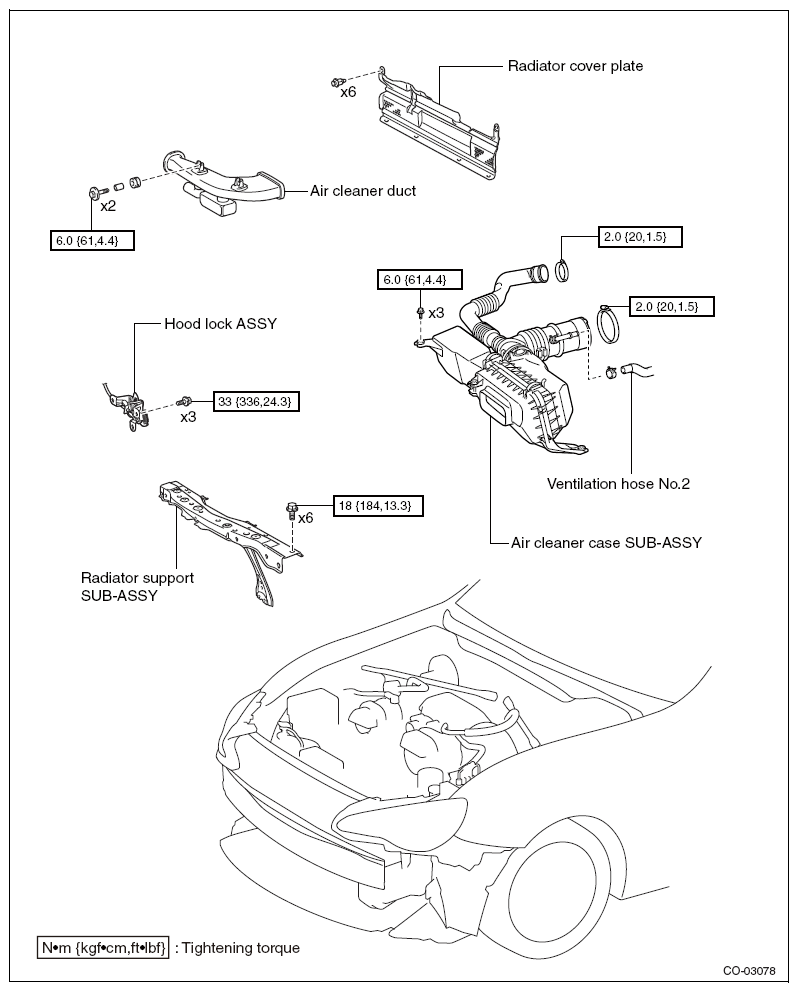

Fig 1: Exploded View Of Radiator Assembly With Torque Specifications (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

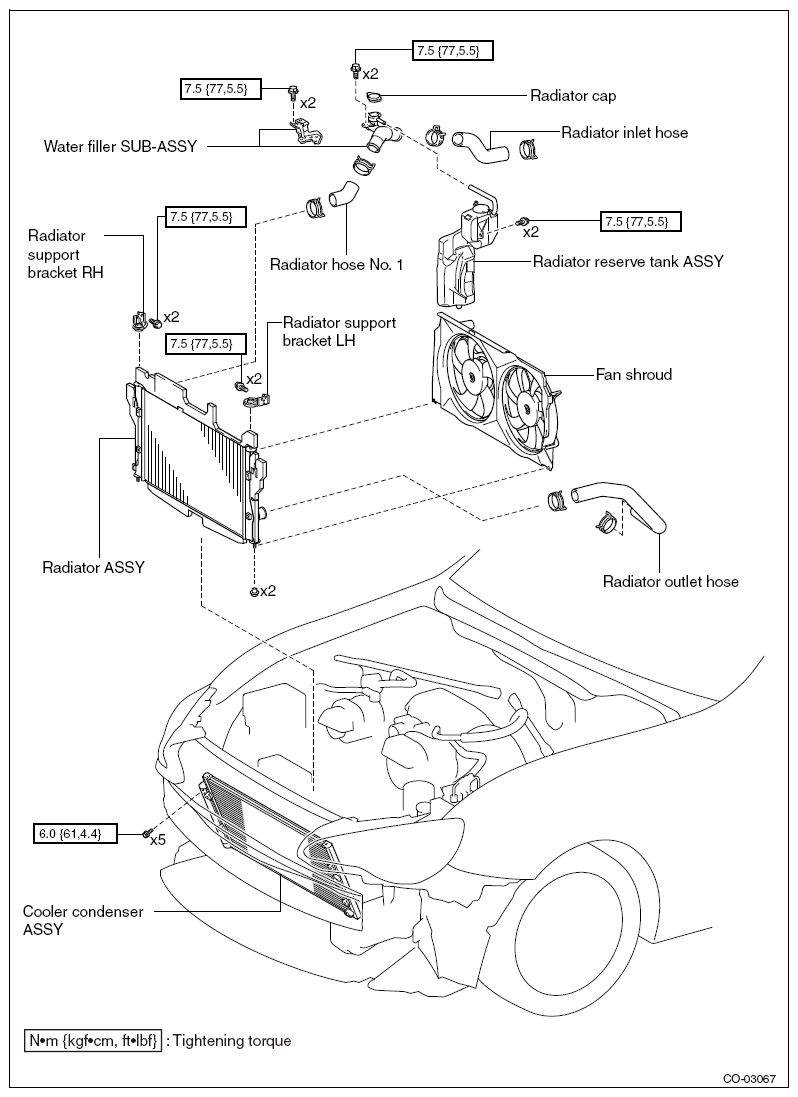

Fig 2: Exploded View Of Radiator Assembly With Torque Specifications (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Radiator Assembly With Torque Specifications (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Exploded View Of Radiator Assembly (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
