Chamber (Fa20)
›
Exploded View
Exploded View

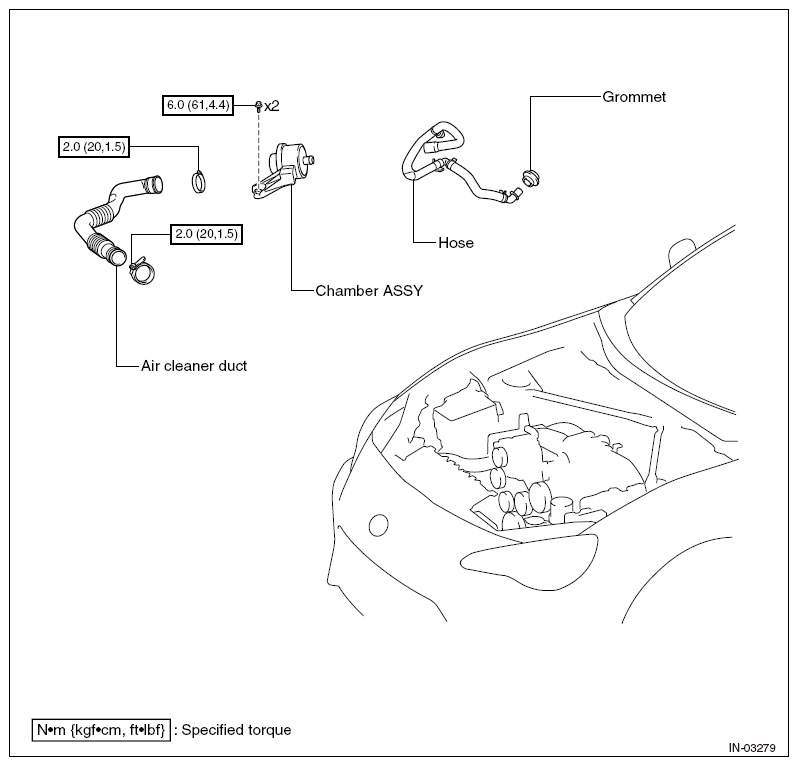

Fig 1: Exploded View Of Chamber With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
