Intake Manifold Assembly (Fa20)
›
Exploded View
Exploded View

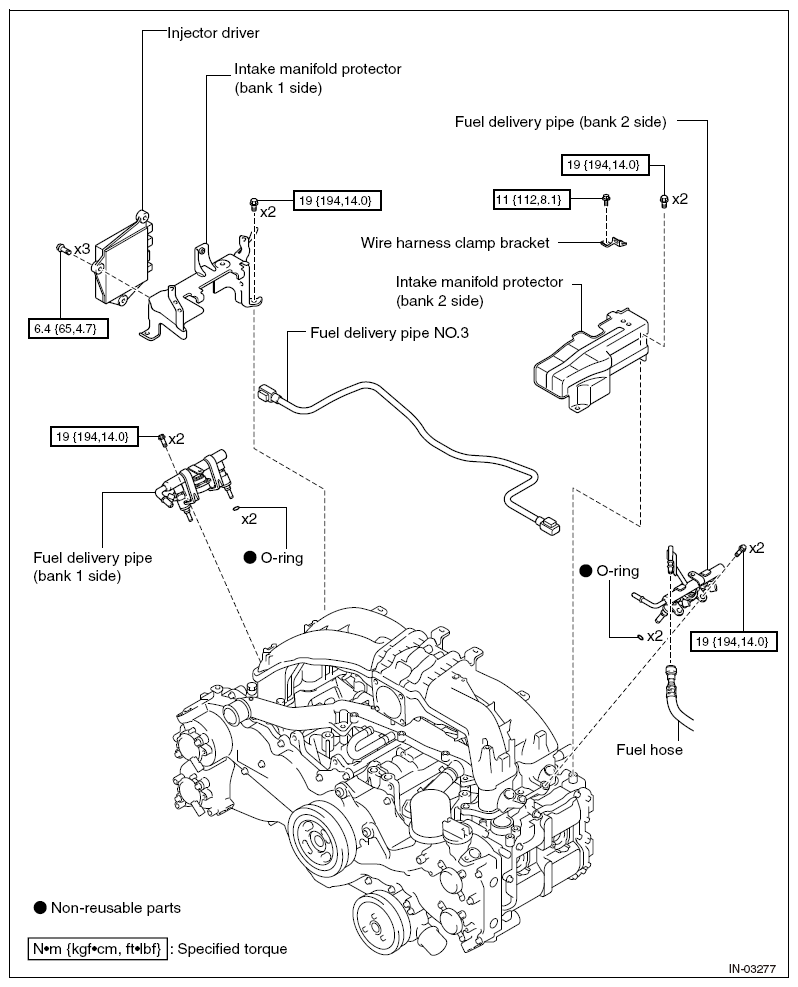

Fig 1: Exploded View Of Intake Manifold Assembly With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

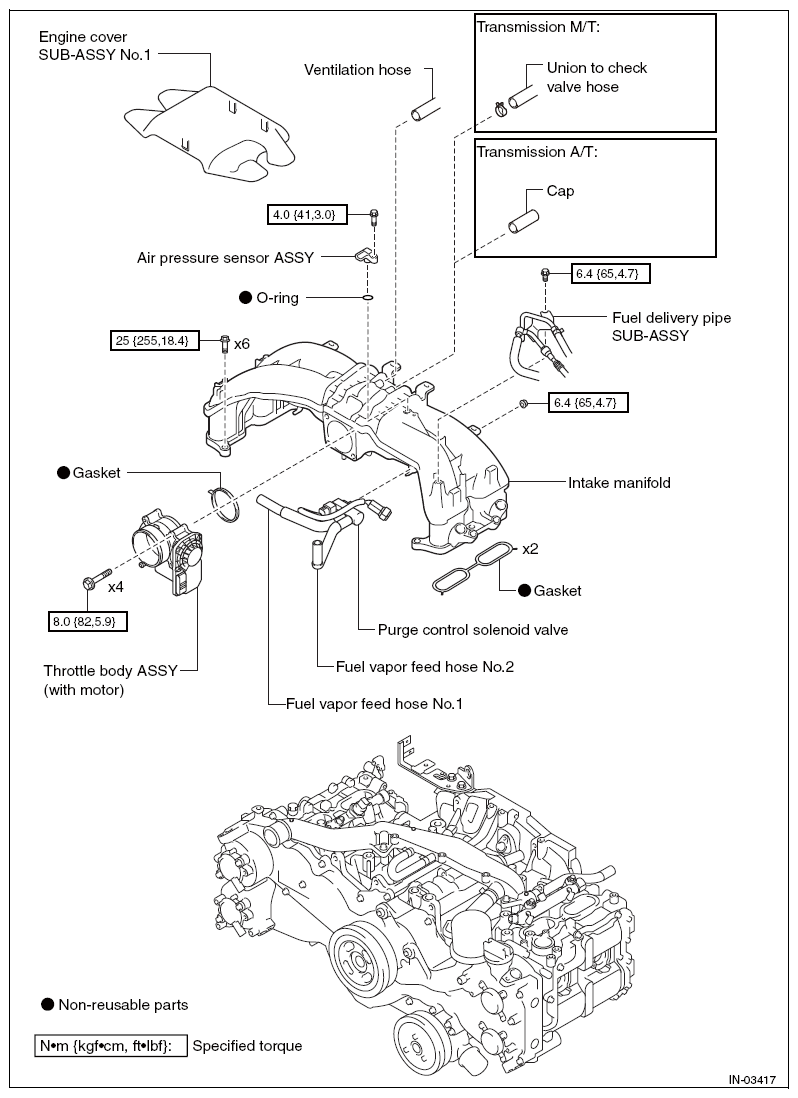

Fig 2: Exploded View Of Intake Manifold Assembly With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Intake Manifold Assembly With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
