Oil Pump Assembly (Fa20)
›
Exploded View
Exploded View

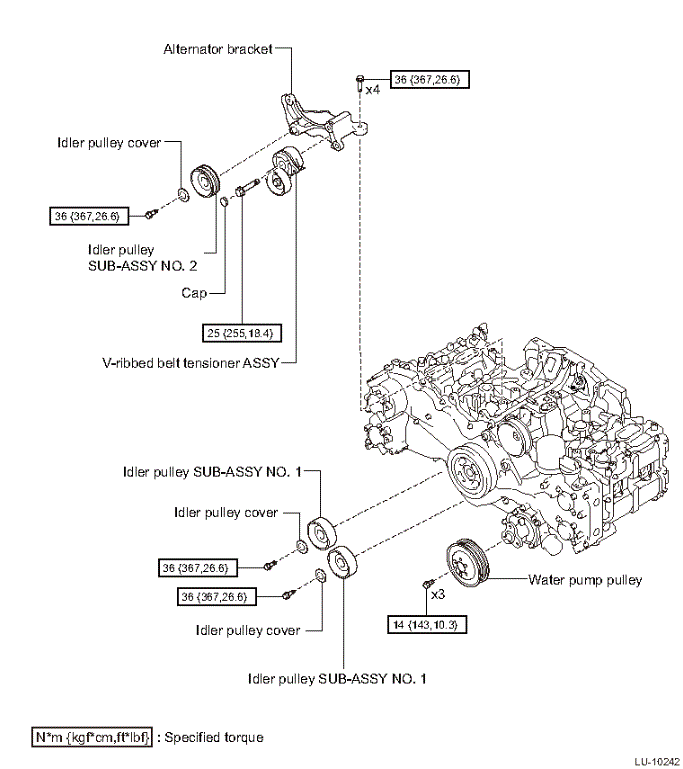

Fig 1: Exploded View Of Oil Pump Assembly With Torque Specifications (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

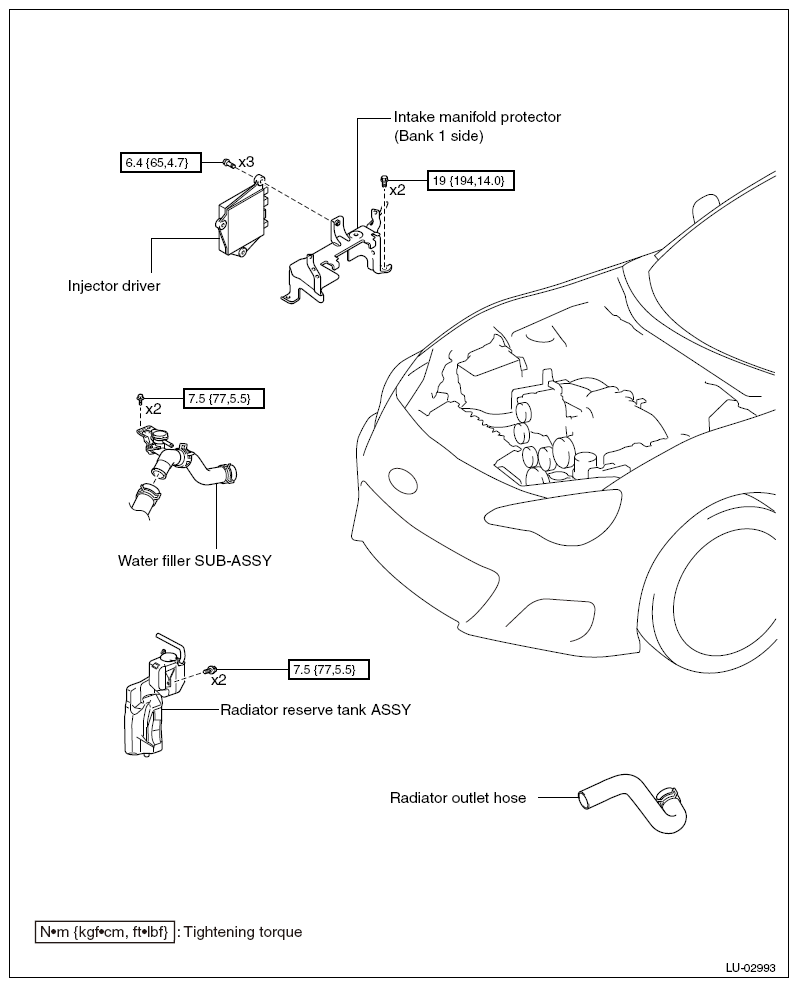

Fig 2: Exploded View Of Oil Pump Assembly With Torque Specifications (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

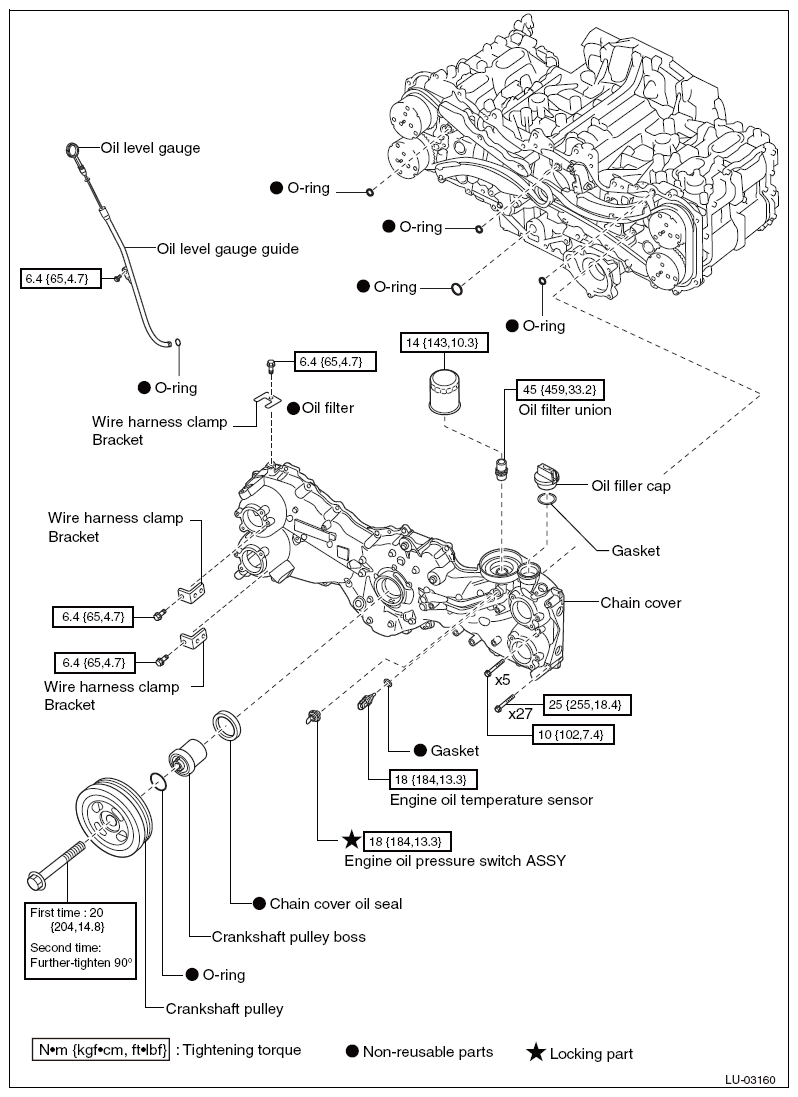

Fig 3: Exploded View Of Oil Pump Assembly With Torque Specifications (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Exploded View Of Oil Pump Assembly With Torque Specifications (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Exploded View Of Oil Pump Assembly With Torque Specifications (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
