Ignition System (Fa20)
›
Circuit Figure
Circuit Figure

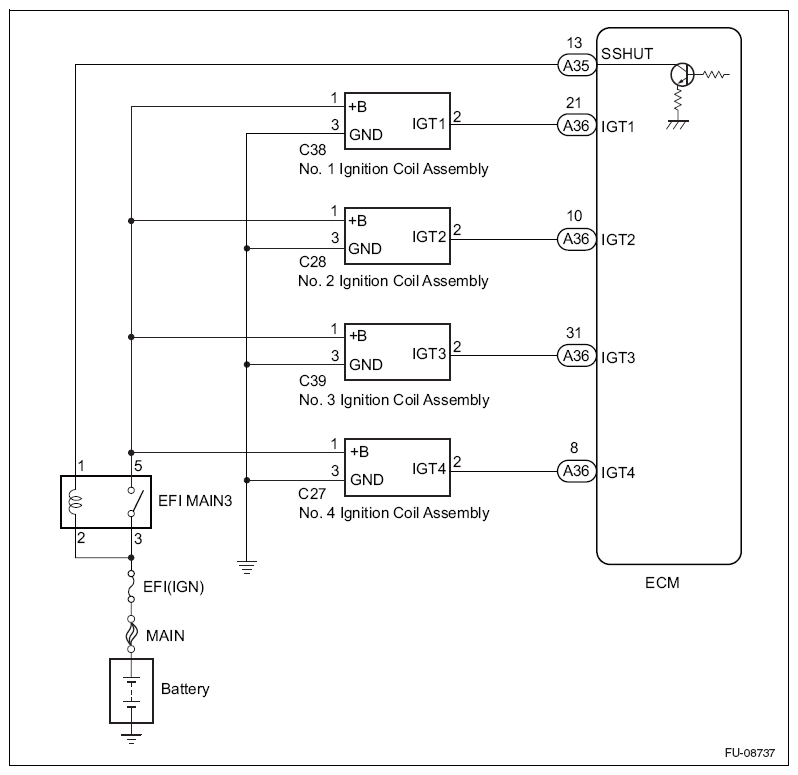

Fig 1: Ignition System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
