Ignition System (Fa20)
›
Parts Location
Parts Location

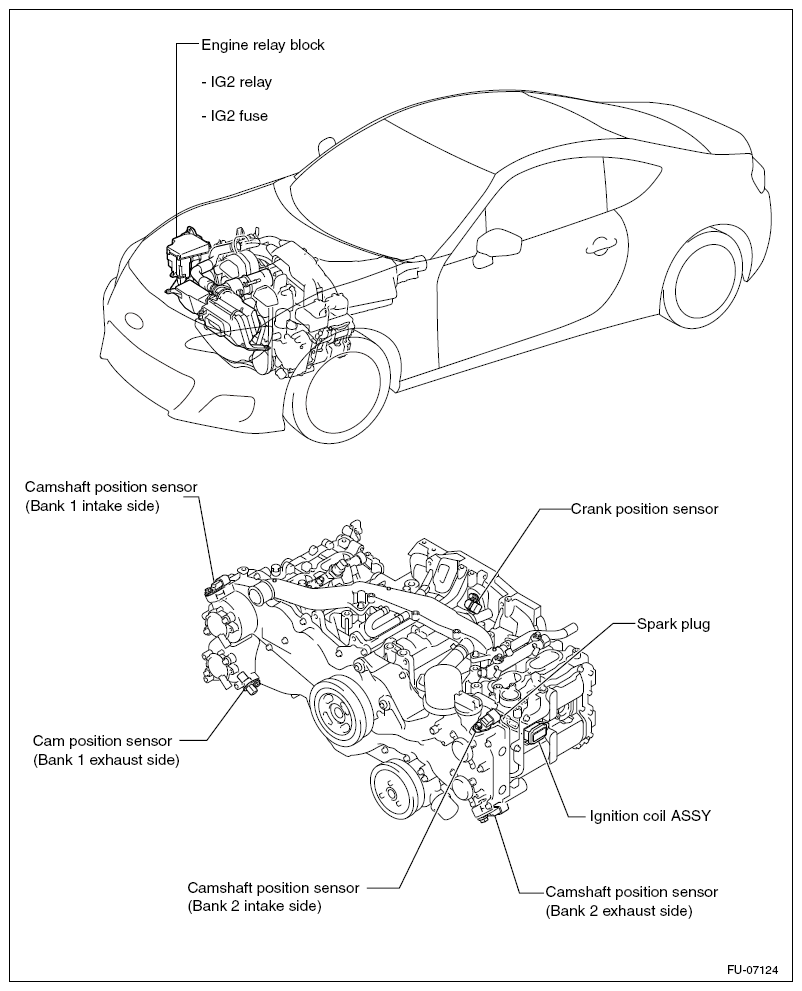

Fig 1: Ignition System Parts Location
Courtesy of SUBARU OF AMERICA, INC.

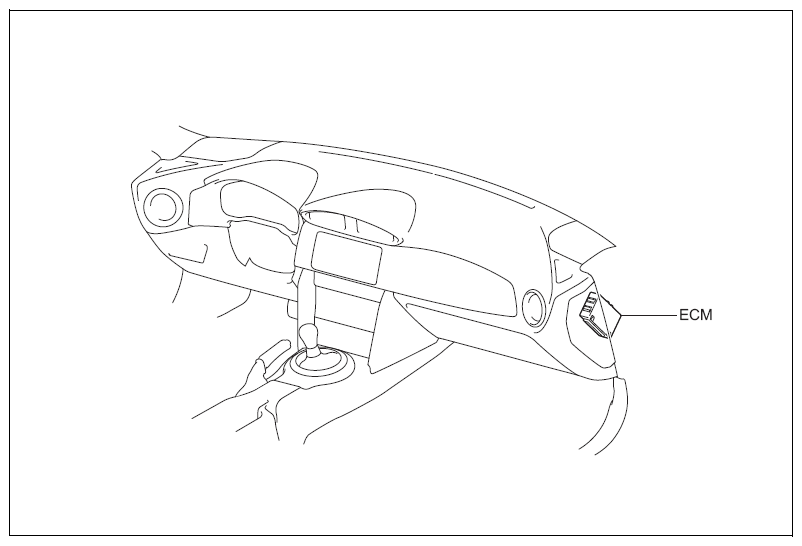

Fig 2: ECM Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
