Fuel Pump Assembly (Fa20/High Fuel Pressure)
›
Exploded View
Exploded View

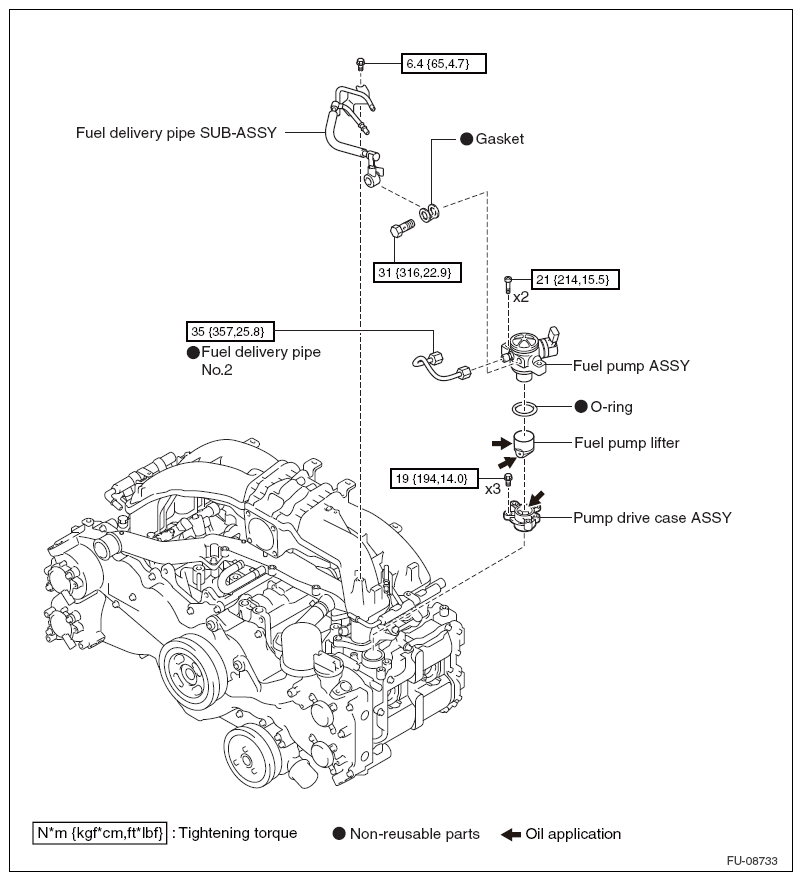

Fig 1: Exploded View Of Fuel Pump Assembly With Torque Specifications (FA20/High Fuel Pressure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
