Fuel Sender Gauge Assembly (Fa20)
›
Exploded View
Exploded View

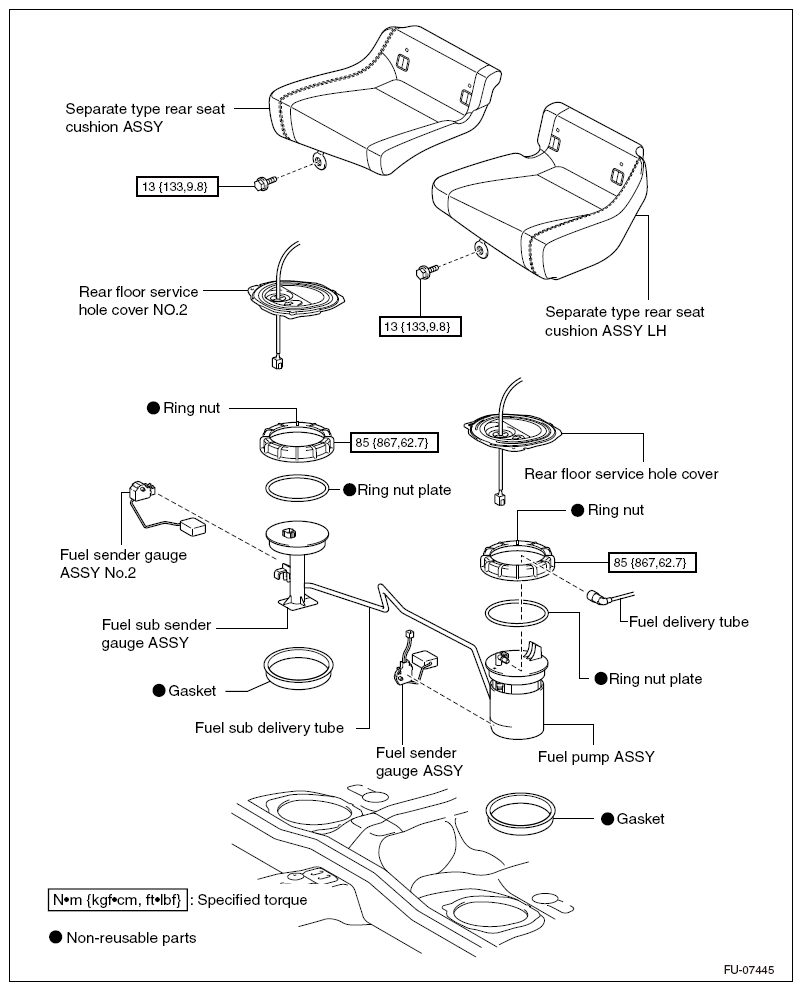

Fig 1: Exploded View Of Fuel Sender Gauge Assembly With Torque Specifications (FA20)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
