Circuit description

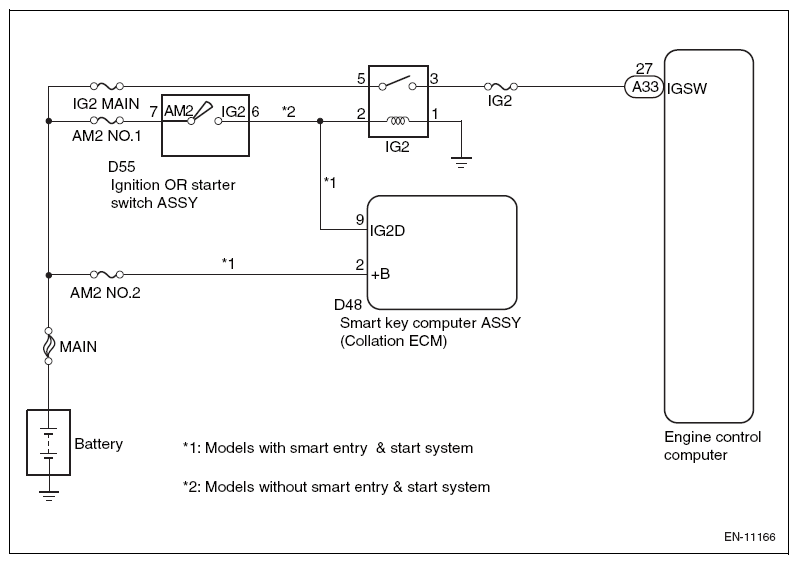

Fig 1: Ignition SW Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

DTC DETECTION CONDITION

DTC No.	DTC detection conditions	Suspected parts
P2530	Ignition switch input circuit is instantaneously interrupted 5 times or more (1 trips detection logic)	IG SW
