Engine Control System Diagnostics - Introduction
›
EFI System (Fa20)
›
Parts Location
Parts Location

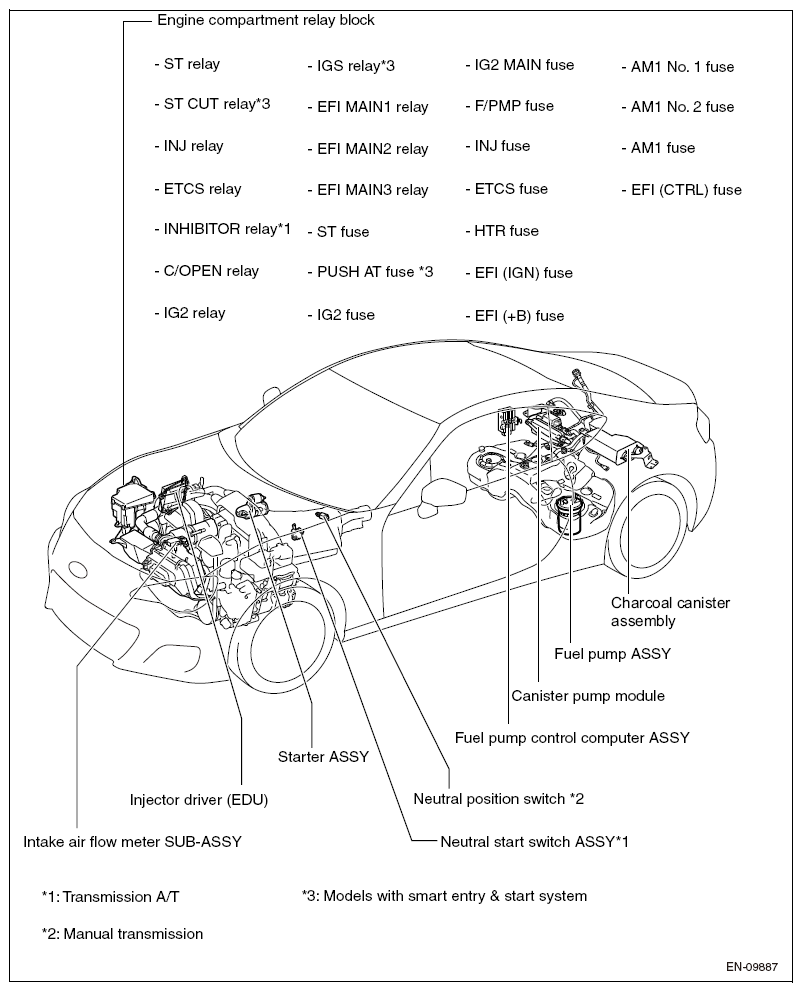

Fig 1: Engine Control Parts Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

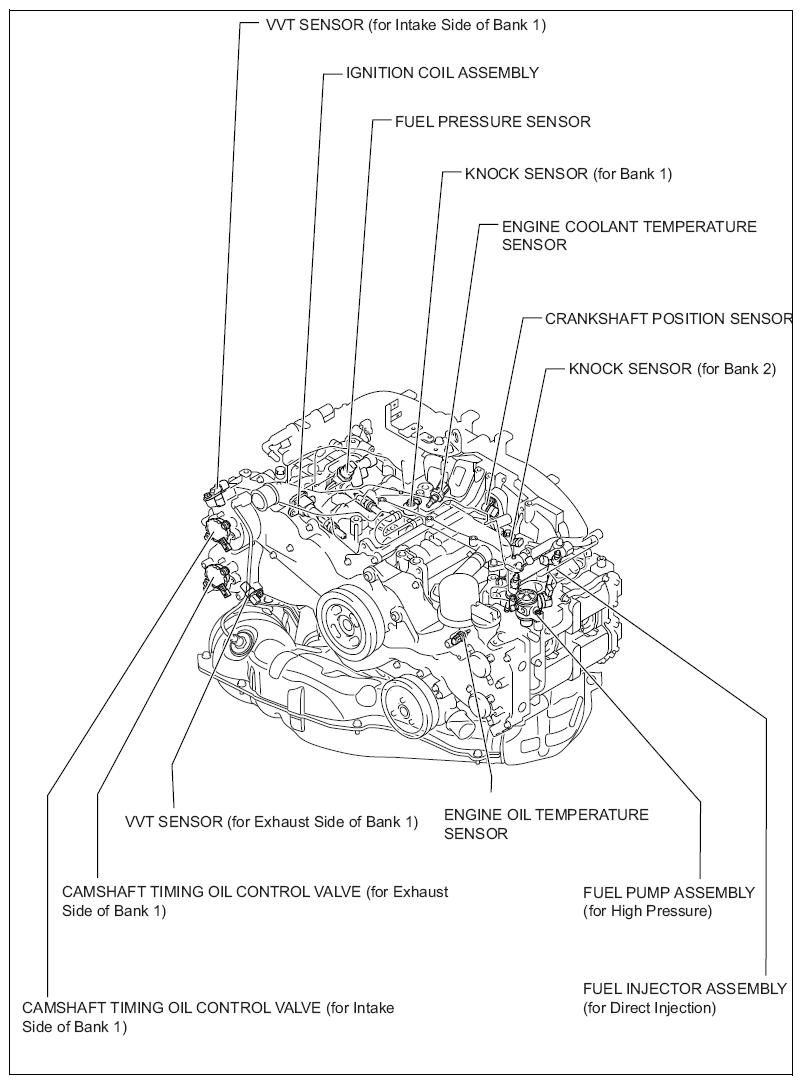

Fig 2: Engine Control Parts Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

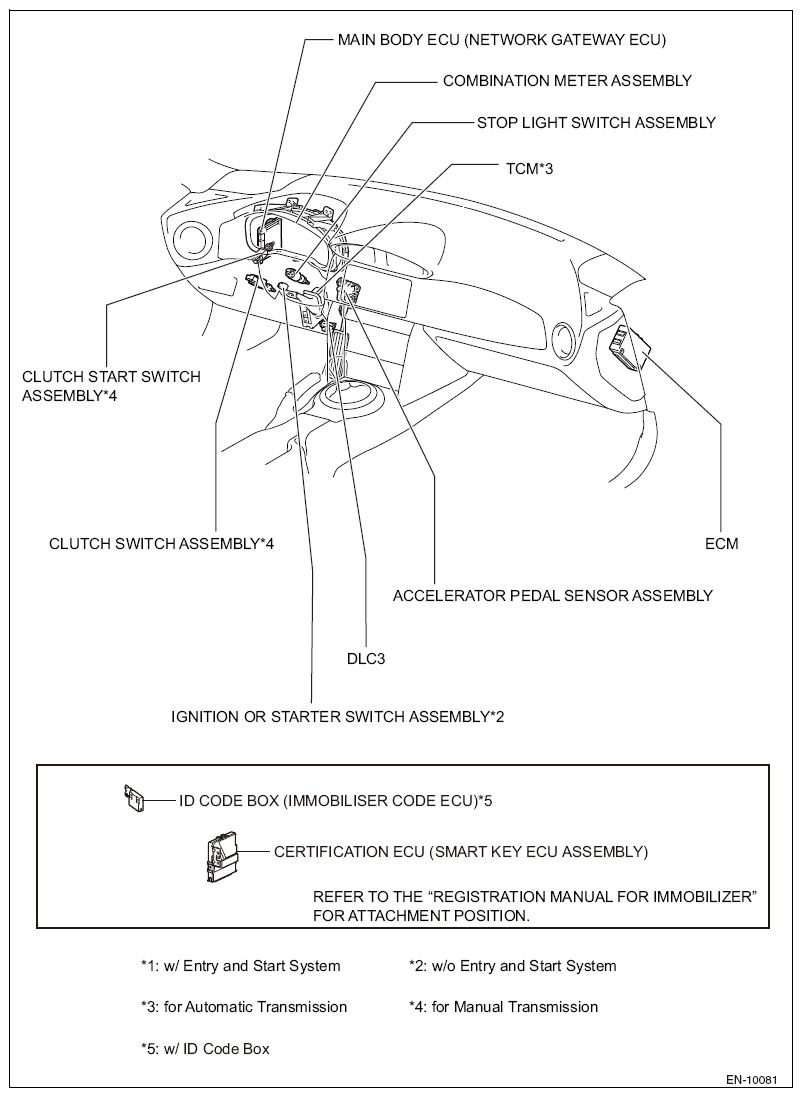

Fig 3: Engine Control Parts Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

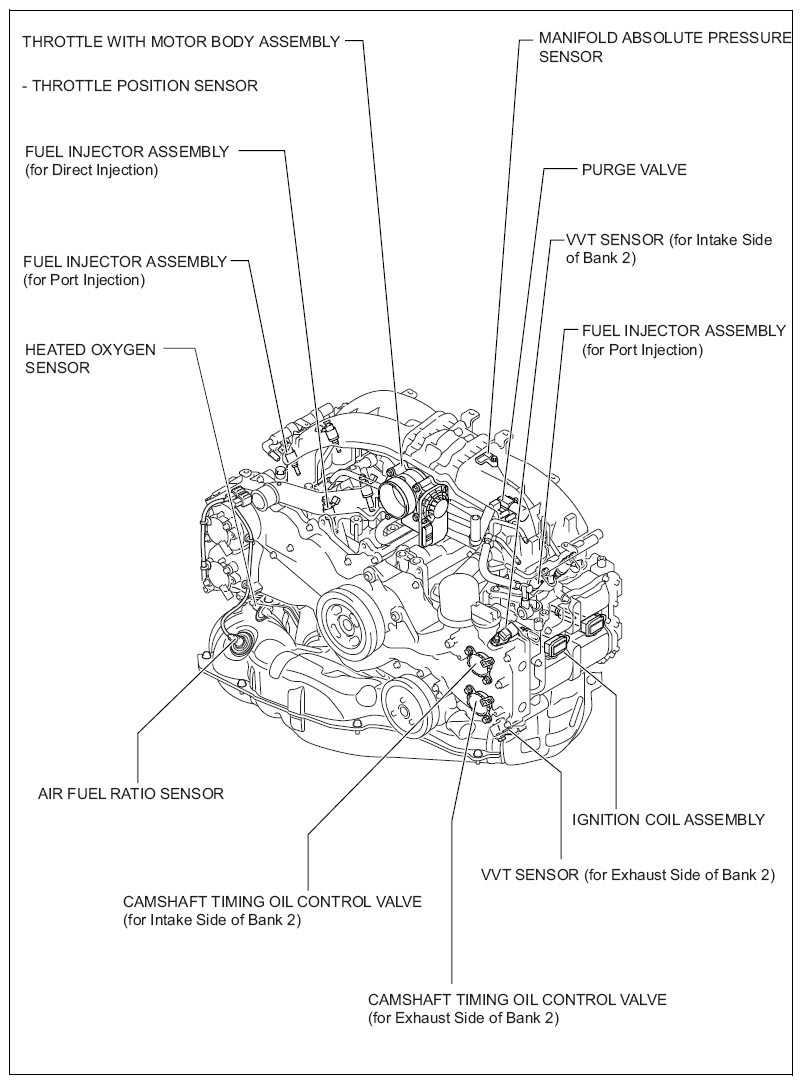

Fig 4: Engine Control Parts Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
