Repair and Diagnosis
›
Steering
›
Steering Gear/Linkage
›
Steering Linkage
›
Exploded View
Exploded View

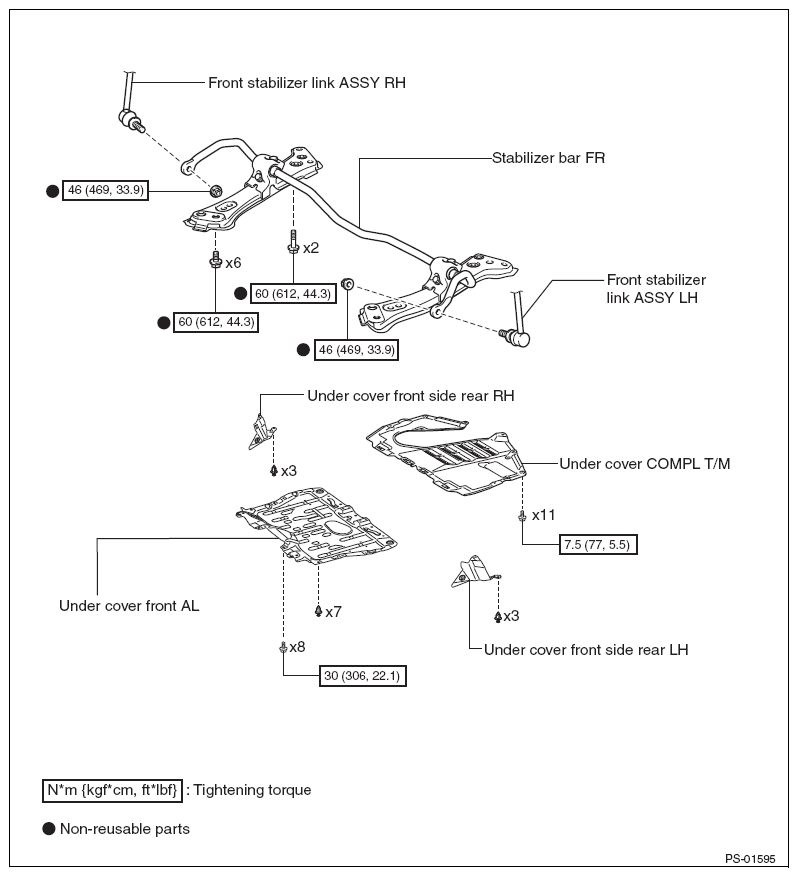

Fig 1: Exploded View Of Steering Linkage With Torque Specifications (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

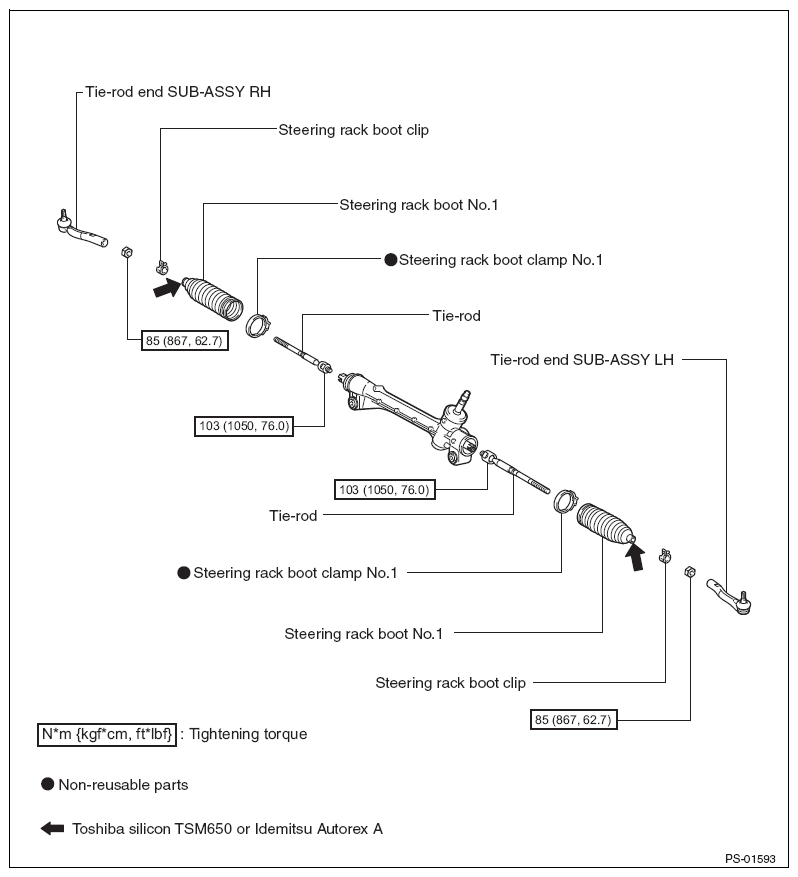

Fig 2: Exploded View Of Steering Linkage With Torque Specifications (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

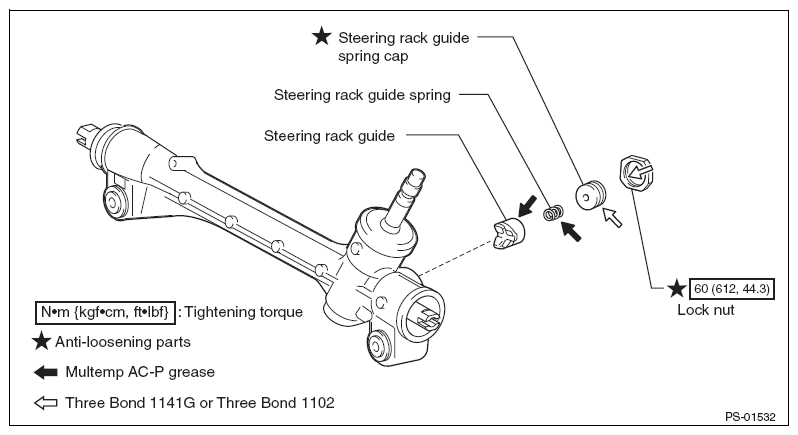

Fig 3: Exploded View Of Steering Linkage With Torque Specifications (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

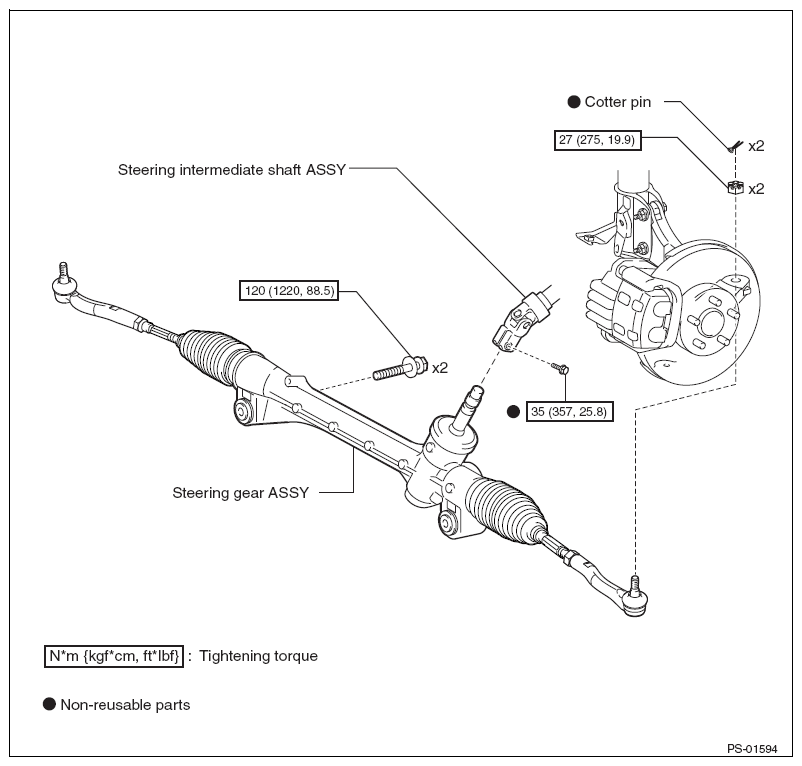

Fig 4: Exploded View Of Steering Linkage With Torque Specifications (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
