Engine Coolant Temperature Sensor: Installation

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

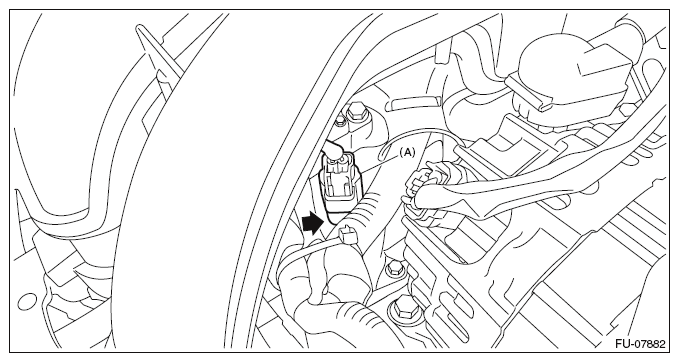

Fig 1: Locating Engine Coolant Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
