Chain Cover

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Gasoline engine model

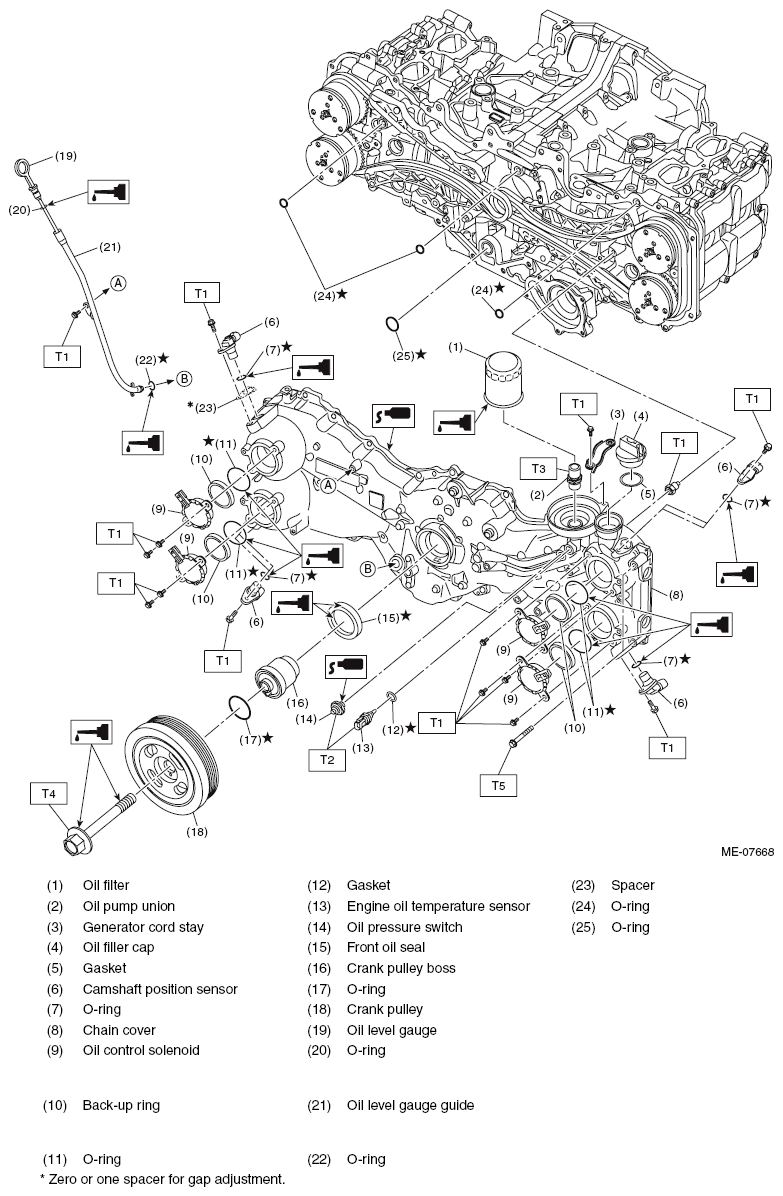

Fig 1: Identifying Chain Cover Components (Gasoline Engine Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 45 (4.6, 33.2)

T4: < Ref. to INSTALLATION , Crank Pulley.>

T5: < Ref. to INSTALLATION , Chain Cover.>
HEV model

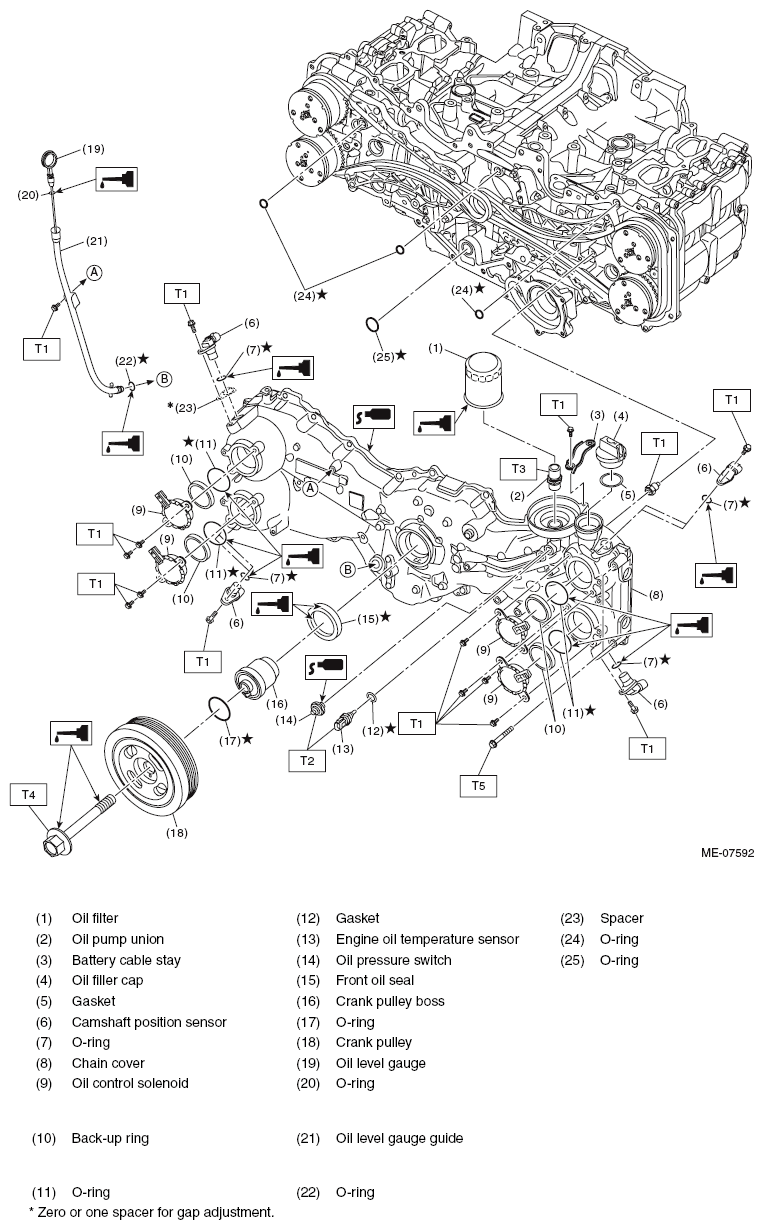

Fig 2: Identifying Chain Cover Components (HEV Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 45 (4.6, 33.2)

T4: < Ref. to INSTALLATION , Crank Pulley.>

T5: < Ref. to INSTALLATION , Chain Cover.>
