Radiator Cap: Inspection

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Check that the radiator cap does not have deformation, cracks or damage.
Attach the radiator cap tester to radiator cap.

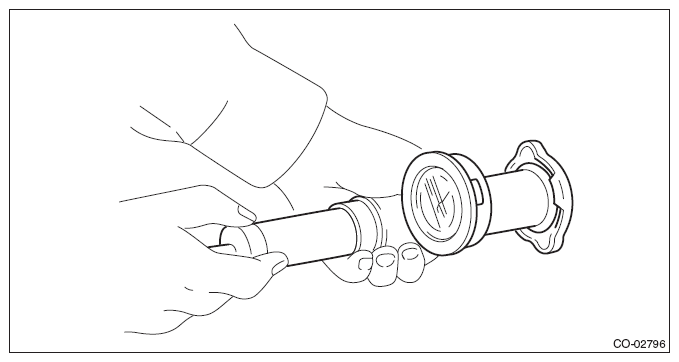

Fig 1: Checking Radiator Cap Does Not Have Deformation, Cracks Or Damage
Courtesy of SUBARU OF AMERICA, INC.
Increase pressure until the radiator cap tester gauge needle stops. Radiator cap is functioning properly if it holds the service limit pressure for 5 - 6 seconds. Replace the radiator cap if its valve opens at less than the service limit.
CAUTION: Be sure to remove foreign matter and rust from the cap in advance. Otherwise, results of pressure test will be incorrect.

Standard:

93 - 123 kPa (0.95 - 1.25 kg/cm ² , 14 - 18 psi)

Service limit:

83 kPa (0.85 kg/cm ² , 12 psi)
