Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the column assembly - steering. < Ref. to REMOVAL , Steering Column.>
Remove the brake pedal assembly.
1. Disconnect the switch - stop light connector.
2. Disconnect the brake stroke sensor connector (c). (HEV model)
3. Remove the snap pin (a) and clevis pin (b), and remove the operating rod from the brake pedal.
  CAUTION:
  - Be careful not to apply excessive force to the operating rod when handling the operating rod. The angle may change by ±3°, and it may result in damage to power piston cylinder.
  - Do not change the push rod length.

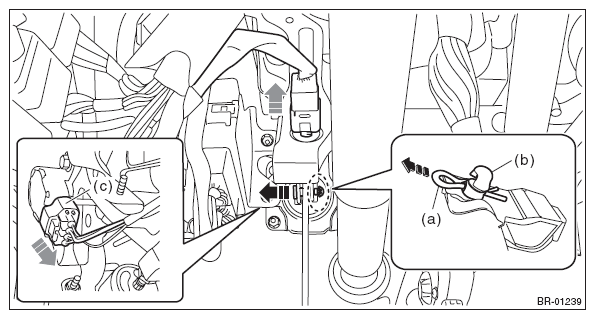

  Fig 1: Removing Snap Pin And Clevis Pin
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the bolt and nut, and then detach the brake pedal assembly.

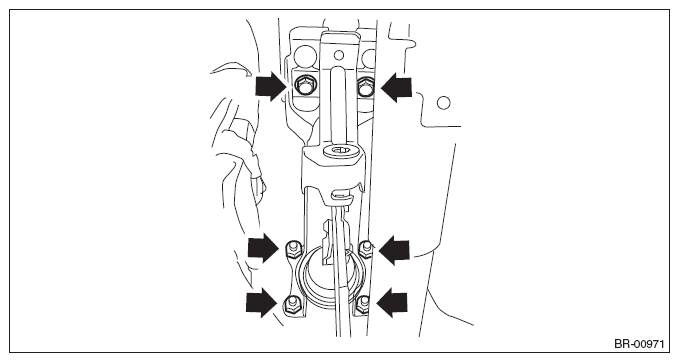

  Fig 2: Locating Bolt And Nut Of Brake Pedal
  Courtesy of SUBARU OF AMERICA, INC.
