Rear Disc Rotor: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before installation, remove mud and foreign matter from the caliper body assembly.

Before installation, check the rear disc rotor. < Ref. to INSPECTION , Rear Disc Rotor.>
Install each part in the reverse order of removal.
NOTE: When installing the rear disc rotor, match the alignment mark (a) of the rear disc rotor and the alignment mark (b) of the bolt - hub.

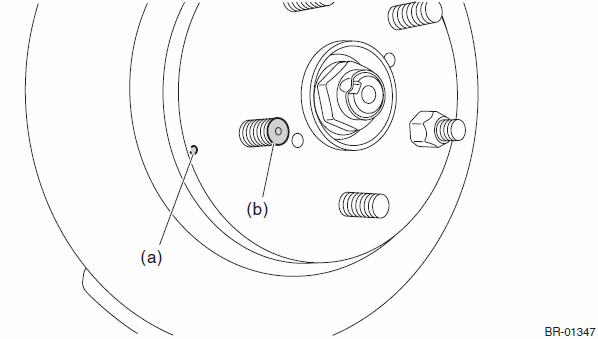

Fig 1: Locating Alignment Marks For Rear Disc Rotor
Courtesy of SUBARU OF AMERICA, INC.
Adjust the parking brake. < Ref. to ADJUSTMENT , Parking Brake Assembly (Rear Disc Brake).>
Tightening torque:

Brake hose bracket: 33 N.m (3.36 kgf-m, 24.3 ft-lb)

Mounting bolt: 66 N.m (6.73 kgf-m, 48.7 ft-lb)

Rear wheel: Except for C4 model

120 N.m (12.24 kgf-m, 88.5 ft-lb)

Rear wheel: C4 model

100 N.m (10.20 kgf-m, 73.8 ft-lb)
