Disassembly Of Combination Meter Assembly
WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Be careful not to apply excessive force to the trip knob.
- Be sure not to touch the meter indicator needle.

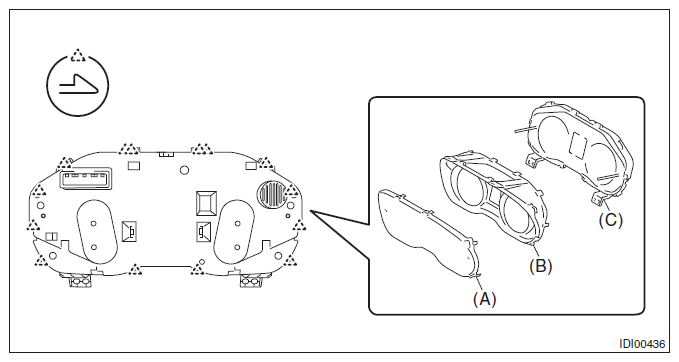

Release the claw, and remove the glass - combination meter (A) and visor - combination meter (B) from the meter - main assembly (C).
