Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the screw and clips, and turn over the front side of the mud guard - front.

Fig 1: Turning Front Side Of Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
From the bottom of the bumper face - front, remove the front fog light bulb.
1. Disconnect the connector.
2. Remove the bulb.
  - Model without SRF

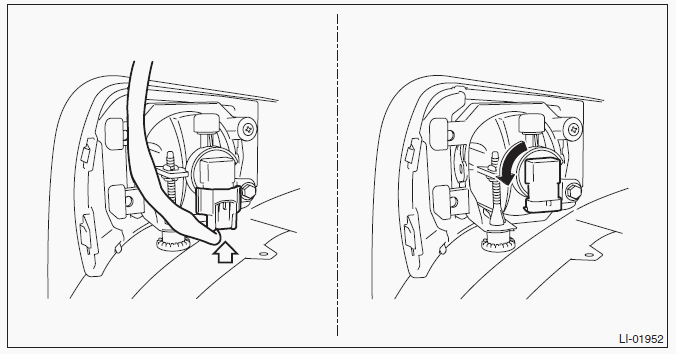

    Fig 2: Removing Front Fog Light Bulb
    Courtesy of SUBARU OF AMERICA, INC.
  - Model with SRF

    Fig 3: Removing Front Fog Light Bulb
    Courtesy of SUBARU OF AMERICA, INC.
