HEV Model

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
Remove the trim panel - rear gate UPR. <Ref. to REMOVAL , Rear Gate Trim.>
Remove the roof spoiler assembly. <Ref. to REMOVAL .>
Remove the nuts and remove the light assembly - high mounted.

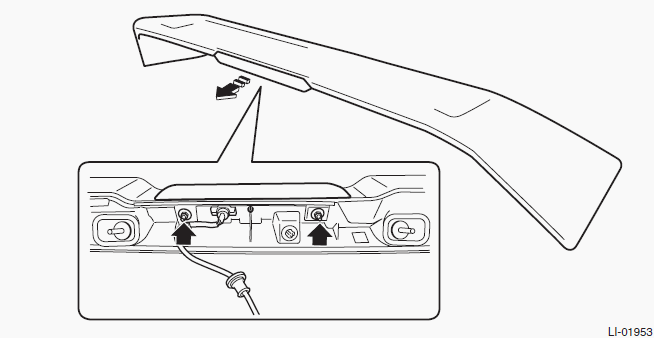

Fig 1: Removing Light Assembly (High-Mounted)

Courtesy of SUBARU OF AMERICA, INC.
