SRF OFF Switch: Removal

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
Release the claws, and then remove the cover.

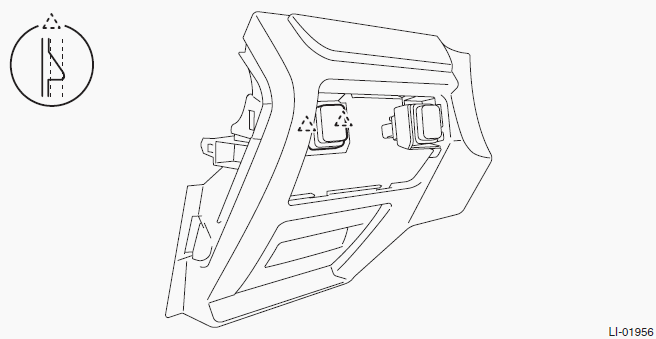

Fig 1: Identifying SRF OFF Switch Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Release the claws and remove the SRF OFF Switch

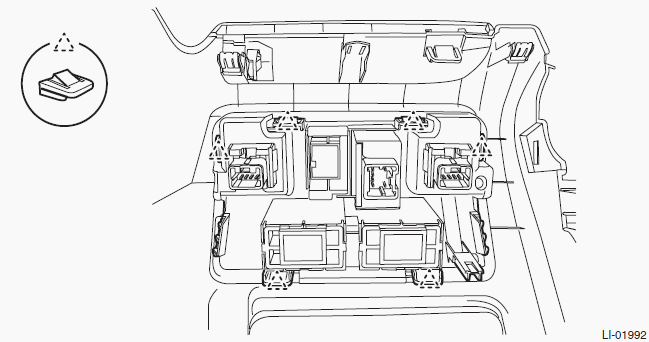

Fig 2: Identifying SRF OFF Switch
Courtesy of SUBARU OF AMERICA, INC.
