Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Locating Oil Pressure Switch Threads Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

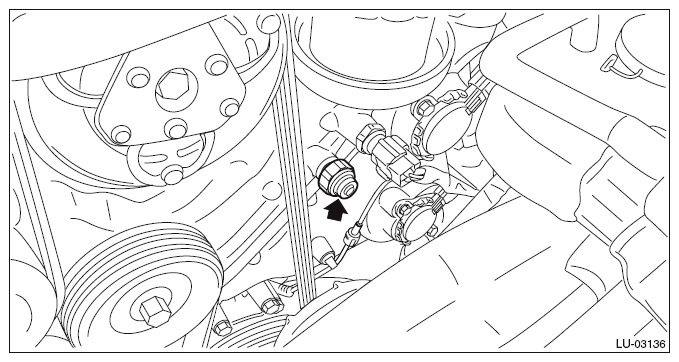

Fig 2: Locating Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.
NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

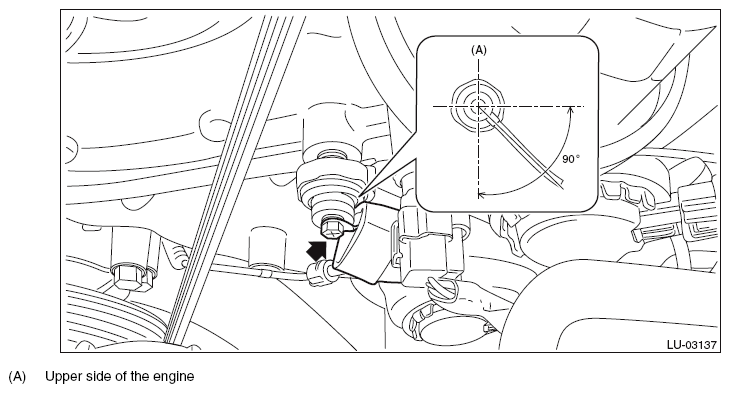

Fig 3: Tightening Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.

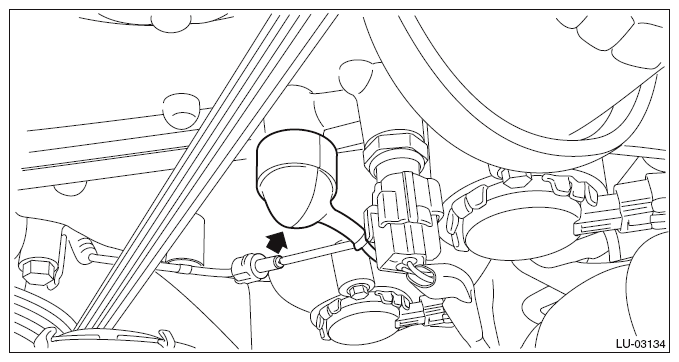

Fig 4: Locating Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover. (HEV model)
Connect the battery ground terminal. < Ref. to BATTERY , NOTE, Note.>
