Control Module I/O Signal: Wiring Diagram

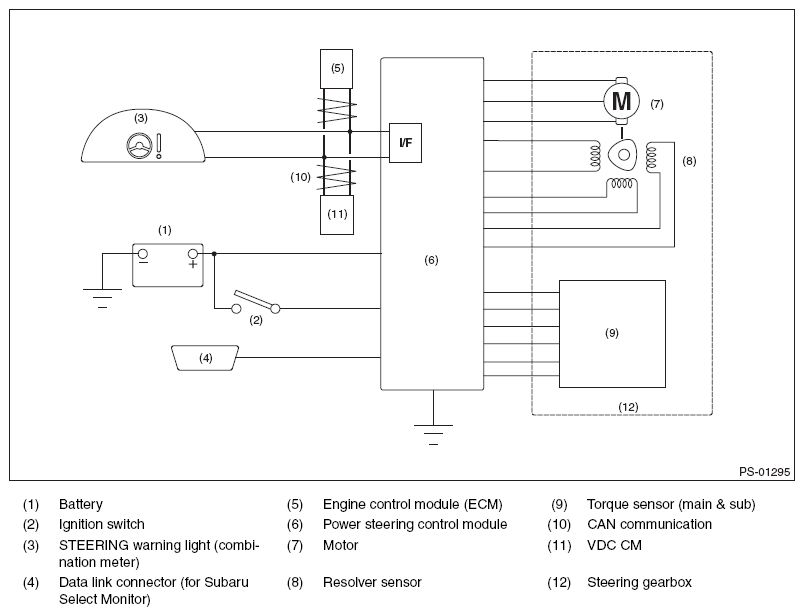

Fig 1: Power Steering Control Module - Wiring Diagram
G10316697Courtesy of SUBARU OF AMERICA, INC.
