Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For the 12 volt engine restart battery, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the fuel pump relay from the main fuse box.

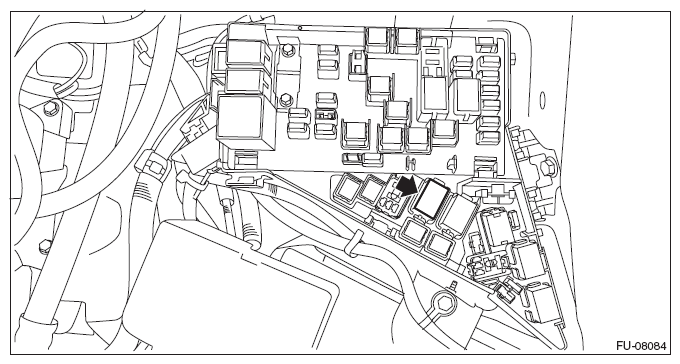

    Fig 1: Locating Fuel Pump Relay From Main Fuse Box
    G09487185Courtesy of SUBARU OF AMERICA, INC.
