Section 81 (Lighting System): General Description: Specification
WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.

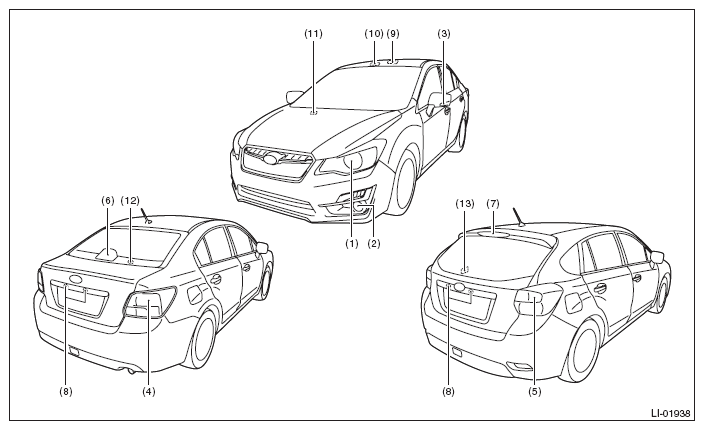

| No. |
Description |
Capacity and wattage |
Type |
| (1) |
Headlight |
Low beam (halogen type) |
12 V - 55 W |
H11 |
| Low beam (HID type) |
12 V - 35 W |
D2R |
| High beam |
12 V - 60 W |
HB3 |
| Front turn signal light |
12 V - 21 W |
WY21W |
| Parking light |
12 V - 5 W |
W5W |
| Side marker light |
12 V - 5 W |
W5W |
| (2) |
Front fog light |
Model without SRF |
12 V - 24 W |
PSX24W |
| Model with SRF |
12 V - 55 W |
H11 |
| (3) |
Side turn signal light |
12 V - 1.1 W (LED) |
|
| (4) |
Rear combination light (4 door model) |
Tail & side marker/stop light |
12 V - 5/21 W |
W21/5W |
| Turn signal light |
12 V - 21 W |
WY21W |
| Back-up light |
12 V - 16 W |
W16W |
| (5) |
Rear combination light (5 door/Crosstrek model) |
Tail/stop light |
12 V - 5/21 W |
W21/5W |
| Back-up light |
12 V - 16 W |
W16W |
| Turn signal light |
12 V - 21 W |
WY21W |
| Side marker light |
12 V - 5 W |
W5W |
| Rear combination light (HEV model) |
Tail light |
12 V - 5 W |
W5W |
| Stop light |
12 V - 2.0 W (LED) |
|
| Back-up light |
12 V - 16 W |
W16W |
| Turn signal light |
12 V - 21 W |
WY21W |
| Side marker light |
12 V - 5 W |
W5W |
| (6) |
High-mounted stop light (4 door model) |
12 V - 0.7 W (LED) |
|
| (7) |
High-mounted stop light |
5 door/Crosstrek model |
12 V - 2.1 W (LED) |
|
| HEV model |
12 V - 1.1 W (LED) |
|
| (8) |
License plate light |
12 V - 5 W |
W5W |
| (9) |
Room light |
12 V - 8 W |
- |
| (10) |
Spot map light |
12 V - 8 W |
- |
| (11) |
Glove box light |
12 V - 1.4 W |
|
| (12) |
Trunk room light (4 door model) |
12 V - 5 W |
W5W |
| (13) |
Luggage room light (5 door/Crosstrek model) |
12 V - 5 W |
W5W |
