Front Under Cover

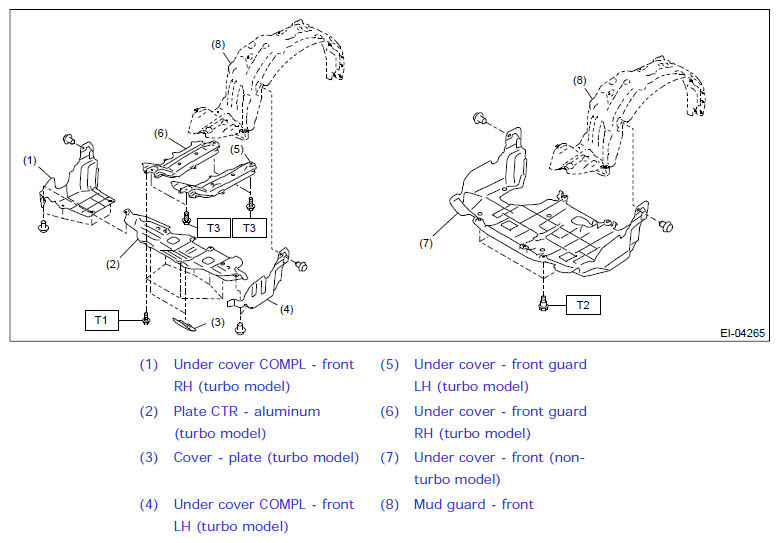

Fig 1: Exploded View Of Front Under Cover

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 18 (1.84, 13.3)

T3: 32 (3.26, 23.6)
