Instrument Panel

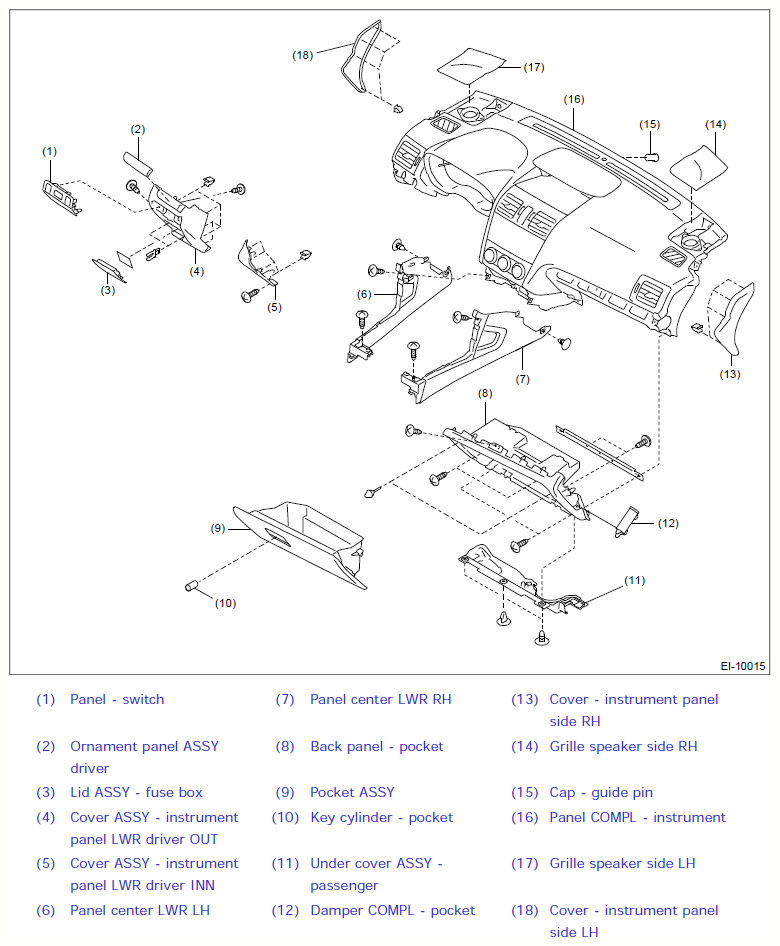

Fig 1: Exploded View Of Instrument Panel (1 Of 3)

G10408756

Courtesy of SUBARU OF AMERICA, INC.

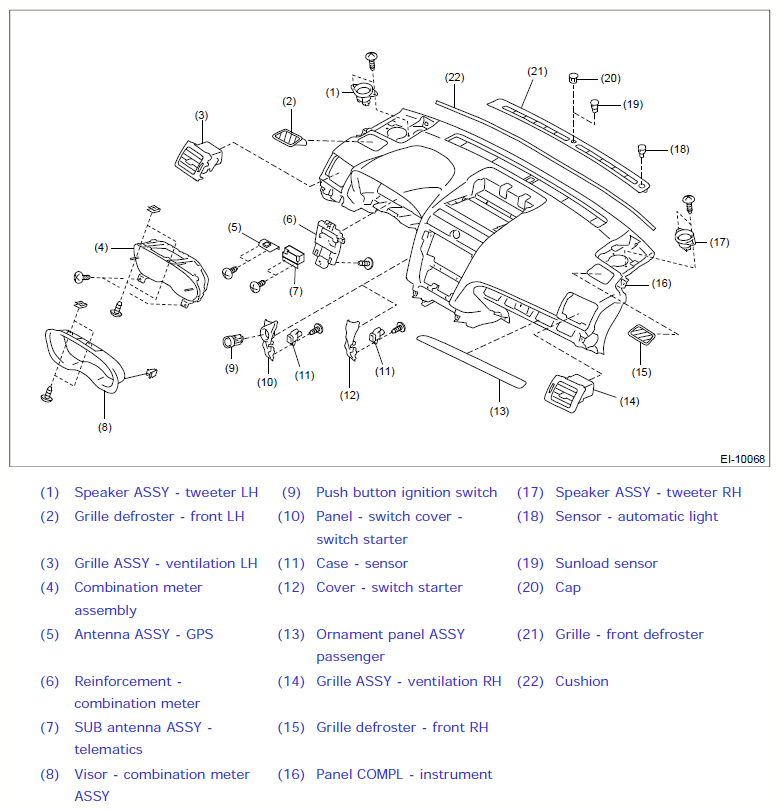

Fig 2: Exploded View Of Instrument Panel (2 Of 3)

G10408757

Courtesy of SUBARU OF AMERICA, INC.

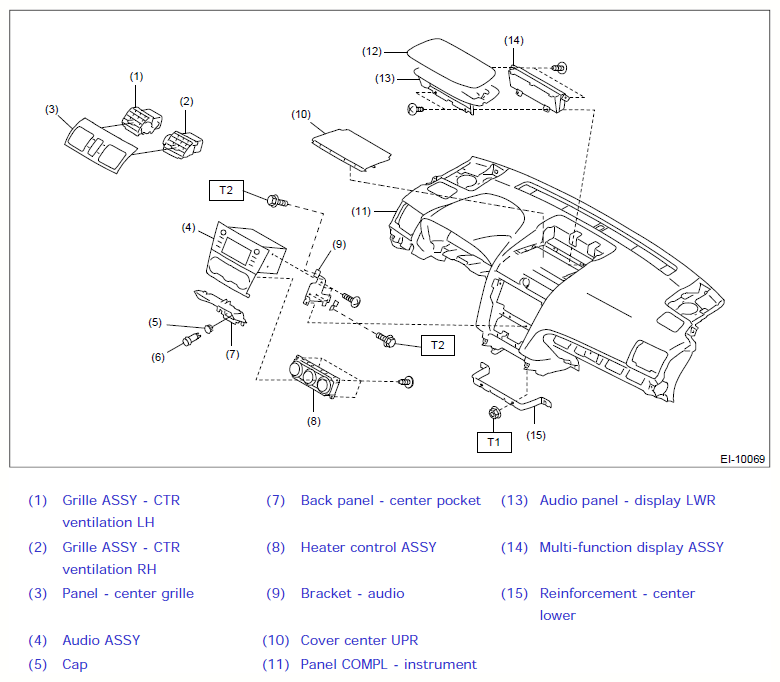

Fig 3: Exploded View Of Instrument Panel (3 Of 3)

G10408758

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.71, 5.2)

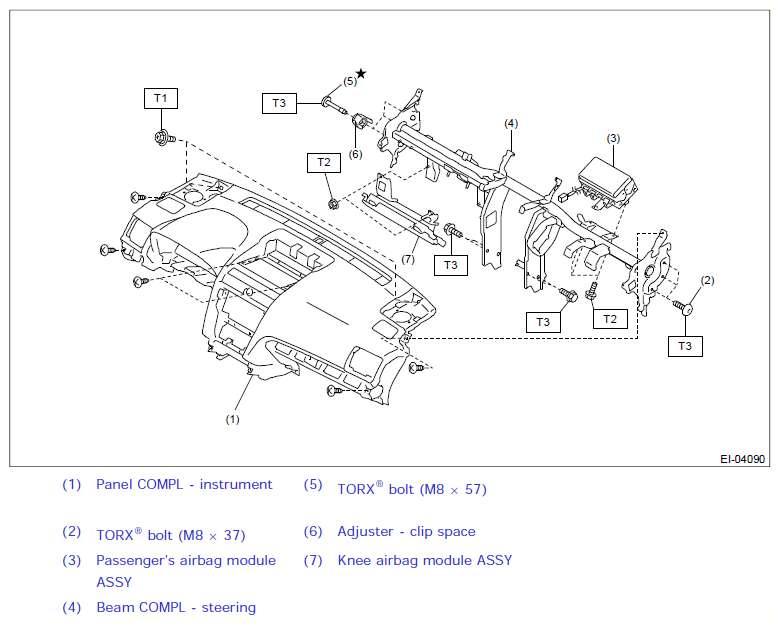

Fig 4: Exploded View Of Instrument Panel

G10408759

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.71, 5.2)

T2: 7.5 (0.76, 5.5)

T3: 25 (2.55, 18.4)

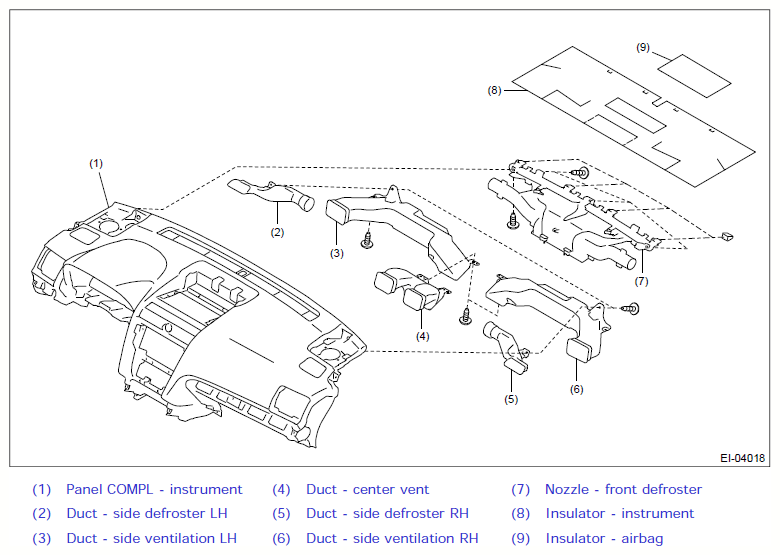

Fig 5: Exploded View Of Instrument Panel

G10408760

Courtesy of SUBARU OF AMERICA, INC.
