Remote Control Mirror Switch: Removal
Remove the panel - power window main switch.
Ref. to GLASS/WINDOWS/MIRRORS > Power Window Control Switch >
MAIN SWITCH
.
Release the claws, and then remove the switch - door mirror.

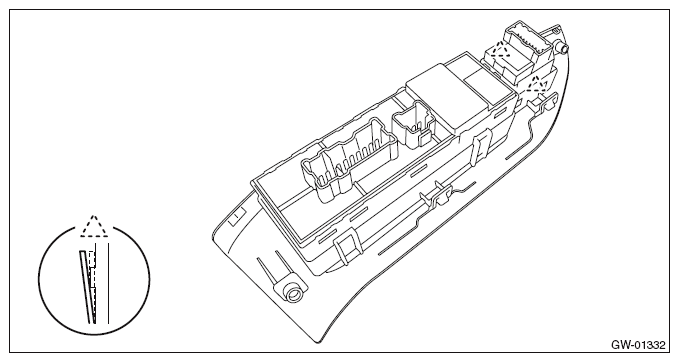

Fig 1: Identifying Door Mirror Switch Claws
Courtesy of SUBARU OF AMERICA, INC.
