VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)
- Models without EyeSight

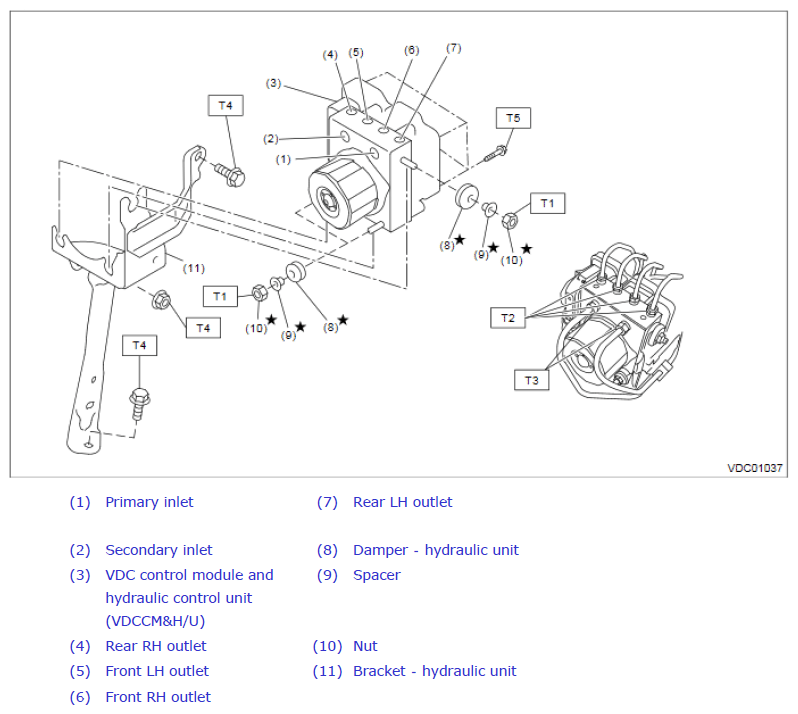

Fig 1: Identifying VDC Control Module And Hydraulic Control Unit Related Components With Torque Specification - Models Without Eyesight
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 19 (1.94, 14.0)
T4: 33 (3.36, 24.3)
T5 : Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)> REPLACEMENT .
- Models with EyeSight

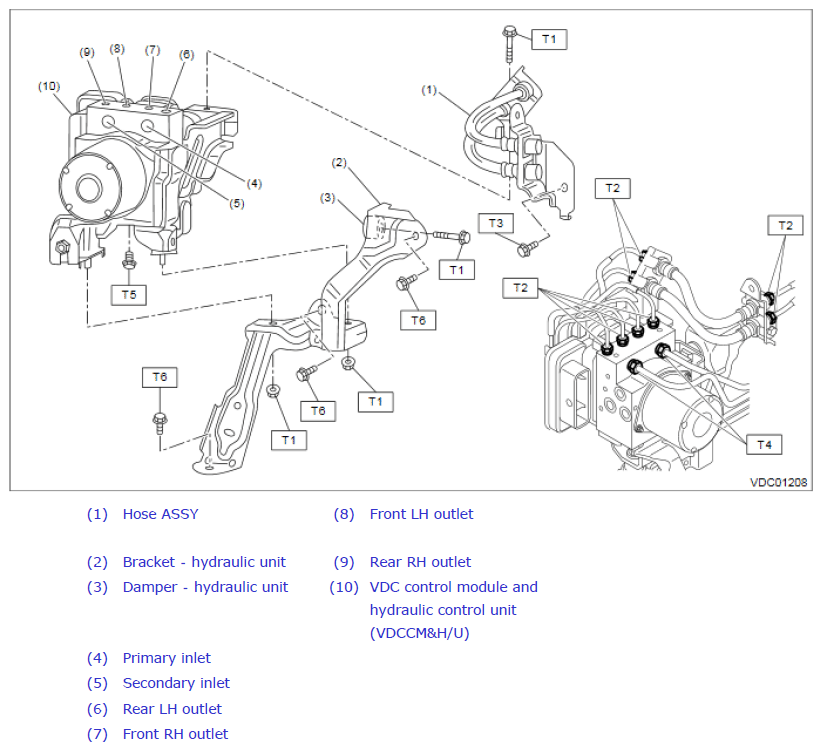

Fig 2: Identifying VDC Control Module And Hydraulic Control Unit Related Components With Torque Specification - Models With Eyesight
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 18 (1.84, 13.3)
T4: 19 (1.94, 14.0)
T5: 27 (2.75, 19.9)
T6: 33 (3.36, 24.3)
