Section 157 (Lighting System): General Description: Specification
WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.

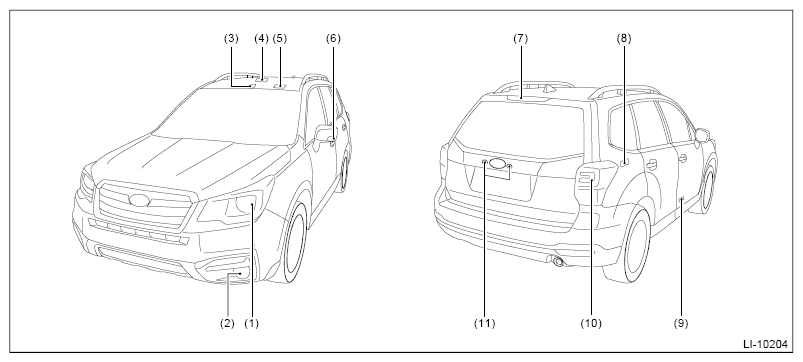

| No. |
Description |
Capacity and wattage |
Type |
| (1) |
Headlight |
Halogen type (low beam) |
12 V - 55 W |
H11 |
| Halogen type (high beam) |
12 V - 60 W |
HB3 |
| LED type (high/low beam) |
12 V - 34/29 W (LED) |
|
| Front turn signal light |
12 V - 21 W |
7444NA |
| Parking light (halogen type) |
12 V - 5 W |
W5W |
| DRL/parking light (LED type) |
12 V - 12/1.2 W (LED) |
|
| Side marker light |
12 V - 5 W |
W5W |
| (2) |
Front fog light |
Model without SRF |
12 V - 19 W |
H16 |
| Model with SRF |
12 V - 55 W |
H11 |
| (3) |
Spot map light |
12 V - 8 W |
- |
| (4) |
Room light |
12 V - 8 W |
- |
| (5) |
Vanity mirror light |
12 V - 2 W |
- |
| (6) |
Side turn signal light |
12 V -1.1 W (LED) |
|
| (7) |
High-mounted stop light |
13.5 V -1.2 W (LED) |
|
| (8) |
Luggage room light |
12 V - 5 W |
W5W |
| (9) |
Door step light |
12 V - 5 W |
W5W |
| (10) |
Rear combination light |
Tail & side marker light |
12 V - 5 W |
W5W |
| Stop light |
12 V - 1.1 W (LED) |
|
| Back-up light |
12 V - 16 W |
W16W |
| Turn signal light |
12 V - 21 W |
WY21W |
| (11) |
License plate light |
12 V - 5 W |
W5W |
