System Block Diagram

WARNING: This page is about a different car, the 2017 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

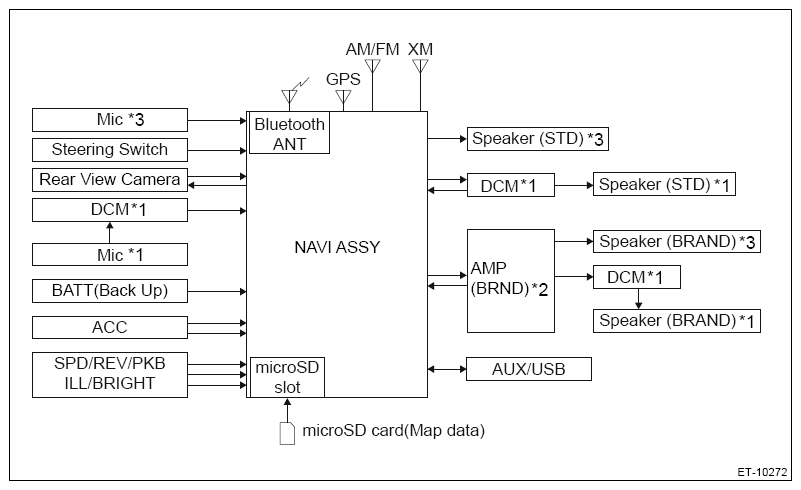

Fig 1: Navigation System Block Diagram

Courtesy of SUBARU OF AMERICA, INC.

*1: Model with telematics

*2: Model with power amplifier

*3: Model without telematics
