Control Valve Body: Installation

Clean the mating surface of oil pan and transmission case.
Make sure that the CVTF filter is installed to the transmission case.
NOTE: Make sure that the CVTF filter does not protrude from the transmission case.

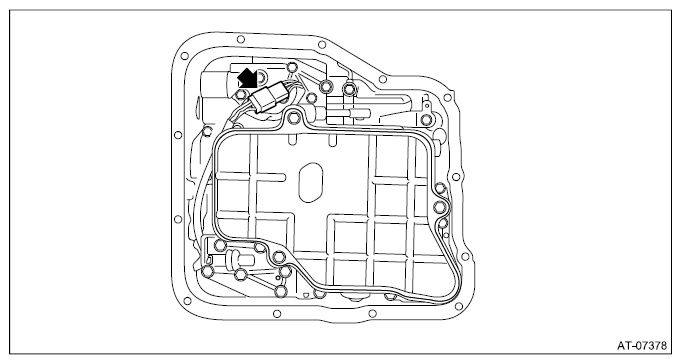

Fig 1: Locating CVTF Filter Of Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Check the control valve body for dust and other foreign matter.
Install the O-ring to the pressure pipe.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
Fig 2: Identifying O-Ring Of Pressure Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the pressure pipe.

Fig 3: Identifying Pressure Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the control valve body to the transmission.
CAUTION:
- Beware of the transmission harness getting caught in between.
- Do not impact or bend the transmission harness because it has the oil temperature sensor inside.
NOTE:
- Engage the manual valve to the manual plate.
- Lead the transmission harness through from the point indicated by dashed line in the figure.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

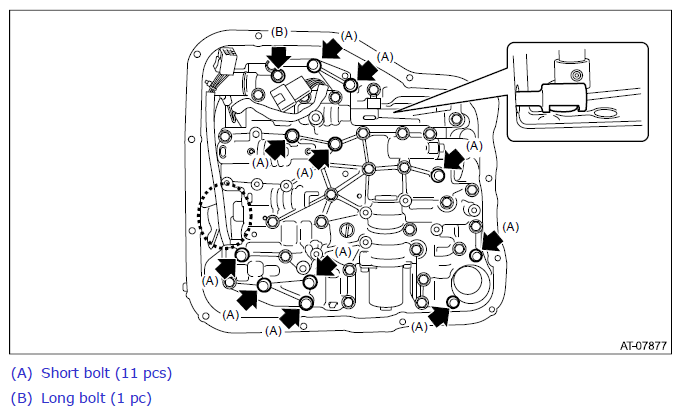

Fig 4: Installing Control Valve Body To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install the O-ring to oil strainer and install the oil strainer.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
- Let the transmission harness run between control valve body and oil strainer.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Fig 5: Locating Control Valve Body And Oil Strainer Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve harness connector.

Fig 6: Locating Control Valve Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Clean the magnet.
Attach the magnet at the specified position of the oil pan.

Fig 7: Identifying Oil Pan Magnet Position
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket all around the oil pan mating surface seamlessly.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 8: Identifying Liquid Gasket Applying Area On Around Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
CAUTION: Beware of the transmission harness getting caught in between.

Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Fig 9: Identifying Oil Pan Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal.
Adjust the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690) >CVTF> ADJUSTMENT .
Perform the operation of AT learning mode. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS)> LEARNING CONTROL .
